The Book of Glue

“As soon as it comes out, everything gets sticky.”

The Bolting Bible



This is free resource by HowNOT2 and our way of contributing to the community. It's nice to understand what you are clipping and trusting with your life, even if you never plan on installing or removing bolts. We also believe that if you are going to spend time and money to bolt something, you should do it well.

This book is in a blog format. This page points to all 17 chapters, and the end of each chapter points to the next.

A downloadable PDF is available HERE.

Lots of Ways to Get Sticky

Glues come in different colors, chemicals, dry times, cure times, lifespans, capsules, tube styles, resistance to extreme temps, and costs. I have rigged highlines, or I should say “tried”, where the glue in bolts (that somebody else installed) literally were sitting in a pile of goo because it didn’t mix and therefore never hardened. What if someone rigged an anchor that was “partially” cured and therefore looked cured… until they took a whipper and they all came out? This same scenario has happened many times to climbers causing some to be hesitant to make these the new standard. So let’s all take a minute to understand the chemistry involved in making the best bond possible.

Colors

The colors are just a manufactures choice more than anything. I love the wonderful qualities of the Hilti 500 V3, but it is red, very red, and that’s not very nature friendly. However, in UV light over time, it does change to a dull brown. Other glues come in a grey and brown and everything in between. This could be a deciding factor in what glue you use.

Chemicals

The chemicals that make “rock hard” glue are a resin and hardener. Resin bases fall into one of the following categories: epoxy, epoxy-acrylate, vinylester, and polyester. Epoxies have 4x the bond as polyester, are stronger, are not porous like polyester and therefore last decades longer. The epoxies do take a little longer to cure but like cement, it cures harder if it dries slowly. Epoxies tend to be a bit more runny which can be a negative if the rock is overhanging. Polyesters don’t last as long and are weaker, but they cure really quickly and are cheap. We feel Polyester is too weak and has too short of a life span to be used as “permanent” anchor that holds your life and others. Vinylester (like AC-100) and epoxy-acrylate is a middle ground between strength, cure temps and times, and costs. It feels more like grout than liquid plastic so in steep rock it won’t drip out of the hole. It is super good enough for many placements but not as good as epoxy.

WARNING!
MIX. YOUR. GLUE. WELL! We talk about it in this book but if you are scrolling quickly we hope you stopped here for a moment because this is important. Your first squeeze doesn’t “equalize” the two chambers exactly the same in your glue cartridge, meaning you don’t have both components at first. You must squirt out the first few squeezes to make sure it is the right color. You can see that process at minute 29 in this VIDEO. Also, take the first squirt (that you plan on using) and the last squirt home in a little baggie so you can make sure it hardened, which you can assume any glue used between the two is also hardened. MIX. YOUR. GLUE. WELL!

Working Times

Working times or dry times or gel times are the amount of time you can spend installing the bolt before you risk damaging the bond. There is a period of time you can get that bolt exactly where you want it and that is different than the cure time. An epoxy that takes 6 hours to cure, lets you play with it for around 30 minutes, but a vinylester that takes 20 minutes to cure gives you about a minute or two to get that bolt in. If the cliff is in the sun and it's hot out, vinylester can harden upon contact! If you yank on a bolt that is half cured, you could damage that bond significantly. Know the glue you are using by reading the specs on the cartridge AND also be willing to test 1 glue cartridge at home if you have never used it before, especially if you are new to bolting.

Cure Times

Cure time differs between "glues" and using the bolt too soon will comprimise it. In this VIDEO we test EP800 epoxy each hour as it cures to see how the strength increases. It had similar results when submerged under water but struggled to cure at all when it was freezing.

See the full data from the episode here. Vinlyester will cure down to 14F (-10C) but sets up too fast when it's hot.

Plan your project with termperature in mind to NOT need the bolts before they are fully cured.

Wet Holes

Many adhesives are rated for wet installation. Wet placements typically take twice as long to cure.

Lifespans

Lifespans or shelf life all depend on how they were stored and can vary as short as 9 months like Liquid Roc 300 (a polyester) to 18 months, or even as long as 24 months like most epoxies. If you are installing something that could last for generations and people will depend their life on probably best to follow the manufacturers instructions. I have experienced and others reported to me that their vylnester glue (AC100) did not cure and it was because it was past expiration. However, we have used expired epoxy Hilti 500 v3 in Bolt Buster and had great results, it tends to just cure slower, but its not exactly cool to be using glue outside of manufactures specs on bolts people will be depending their lives on.

Capsules

These look like big pills that you would stick up your ass, but if you want to shit again, I wouldn’t do that. They are a more convenient method as you “just” put the capsule in the bolt hole and hammer in your bolt, BUT you can do this wrong a lot easier than when using a tube style. They come in both hammer and screw styles, and it is important to read the installation section below before using them!

Tube styles

Tube style or cartridge style are either a single tube that fits most standard caulk guns. Check this first as a trip was ruined because the plunger didn’t fit! And many glues require a gun designed for denser materials or a very special double tube dispenser tool. Some dispensers come battery powered if you like it fancy.

Temperatures

Curing really depends on temperature. For example: some epoxies like Simpson XP require a minimum of 50F (10C) for 3 days which can be unrealistic in the mountains but others can cure as low as 14F (-10C) in half a day. And, did you know some glues can even lose strength AFTER they are cured if exposed to really extreme high temps? If an area gets too hot like the desert, it can drastically reduce the strength of some glues. In fact, a heat gun is (in theory) one trick to removing glue ins. However, is 75% of the strength of a quality epoxy really a concern since it is so overkill? And do you plan on taking whippers when it is 110F (43C)? Wildfires have been known to compromise the glue on entire crags. Working times are also sensitive. If installing on a hot day, keep your cartridges out of the sun! It can limit the working time or make it too runny. Too cold is a thing also, we took liquid rock 500 to the desert in winter to do tons of testing and we couldn’t get the glue out of the tubes! At 32F (0C) it was practically frozen inside, but our backup Hilti glue worked great. Know your area, and know your glue.

Strength

Epoxy cures slower, but that is one reason it is stronger… a lot stronger than polyester. Vinylester and Epoxy-acrylate is in between but epoxy always stands above them all.

Adhesion

Nothing sticks well to stainless or titanium. All of our BoltBuster tests where the bolt was pulled out instead of breaking, there was no glue left on the metal. That is why all the glue in bolts have twists or notches or threads where the glue will surround it so it has a physical mechanical grip on the bolt itself. Sometimes roughing up the metal helps the glue to adhere but shape is way more important. Threaded rod ends are the most secure way to get glue to stay on the bolt.

Costs

Money is often a factor for the bolter. To spend almost $60 on just glue and buy special dispensers for $163 like Hilti’s setup, could make an installer cry, but then again, this could be an anchor that could last for 100 years if done right. Or you can buy some stainless wedge bolts for around a buck each plus a hanger for about $2 and that doesn’t require much more than the drill. However, if money is a deal breaker for you… should you really be installing anchors that hundreds of people will risk their lives on? Get your dispensers used on ebay, ask your buddies that will enjoy the route or highline to help chip in $20 each, and you can have something you are proud of when you are done.

We also hope our store can help.

Glue Buying Guide

Click image to go to the google spreadsheet to have access to the hyper links


Quick Tip: Hilti HIT-RE 500 V3 is a best-in-class epoxy that isn’t temperature sensitive and isn’t cheap. EP800 is about as good, much cheaper, and it is my favorite glue.

MKT Fastening EP800 Pure Epoxy
  • Epoxy Color: Grey!
  • Lots of technical info on their site
  • 2 year shelf life
  • Available in single and double tube at a very competitive price
  • Installable at 41F to 104F (5C to 40C)
  • Cures at 41F (5C) in 24 hours
  • Cures in 5 hours at 72F (22C)
  • Cures at 104F (40C) in 2 hours
  • Opinion: This is good stuff at a good price in a good color. And we stock it at the HowNot2 store!

Hilti 500 V3
  • Epoxy Color: Red
  • Lots of technical info on their site
  • 2 year shelf life
  • Available only in 11.1oz dual cylinder at $50.00ish each
  • Special dispenser required: Manual or Battery (check ebay for deals first!)
  • Installable at 23F to 110F (-5C to 43C) with a lot of working time
  • Cures at 23F (-5C) in 7 days ○ Cures at 72F (22C) in 6.5 hours
  • Cures at 105F (41C) in 4 hours
  • Opinion: This is the best stuff you can buy. It cures fairly quick for being an epoxy and can handle the extreme temperatures. It is very red and one of the more expensive options though.

Hilti-RE 100
  • Epoxy Color: Purple
  • 2 year shelf life
  • Available in 11.2oz dual cylinder at $19.25 each (and 16.9oz and 47.3oz)
  • Special dispenser required: Manual or Battery
  • Installable at 41F to 104F (5C to 40C)
  • Cures at 41F (5C) in 3 days
  • Cures at 68F (20C) in 24 hours
  • Cures at 104F (40C) in 4 hours
  • Opinion: This is the cheaper epoxy that Hilti sells. Its range of temps is worse, takes much longer to cure and is about half as strong as 500 V3, but it is still a solid epoxy.
    There are better epoxies in this price range.

Hilti HIT-ICE
  • Epoxy Color: Unknown
  • 10.14oz costs $59.99
  • Installable at -10F to 110F (-23C to 43C)
  • It is 64% of its strength at 155F
  • Cures at -10F (-23C) in 3 days
  • Cures at 40F (4C) in 1.5 hours
  • Cures at 70F (21C) in 45 minutes
  • Gel time is only 5 minutes at 60F and 1 minute at 90F
  • ½” threaded rod in a ⅝” hole at 4.5” embedment at 4000psi
    • =5,780lbf tension
    • =12,445lbf sheer
  • Opinion: You won’t bleed from the price because you would only use this in places your blood would freeze before coming out. This is an expensive option for really cold applications. Half as strong as Hilti’s V3 500 but still plenty strong for being the only glue in this guide that goes -10F.

Simpson SET-XP
  • Epoxy Color: Grey/Teal
  • 8.5oz costs $18.16
  • technical info
  • Normal caulk gun dispenser for 8.5oz or a Special dispenser required for the 22oz and the 56oz versions
  • Installable at 70F to 110F (21C to 43C)
  • It is 67% of its strength at 135F
  • 2-year shelf life ○ Working time is quite a while
  • Hole can be submerged in water
  • Cures at 50F (10C) in 3 days
  • Cures at 70F (21C) in 24 hours
  • Opinion: This is good ol’ epoxy. It cures really slowly and the temperature range is lame. It’s going to last a long time but you need to put it in days before you need it, and in garden of eden like conditions.

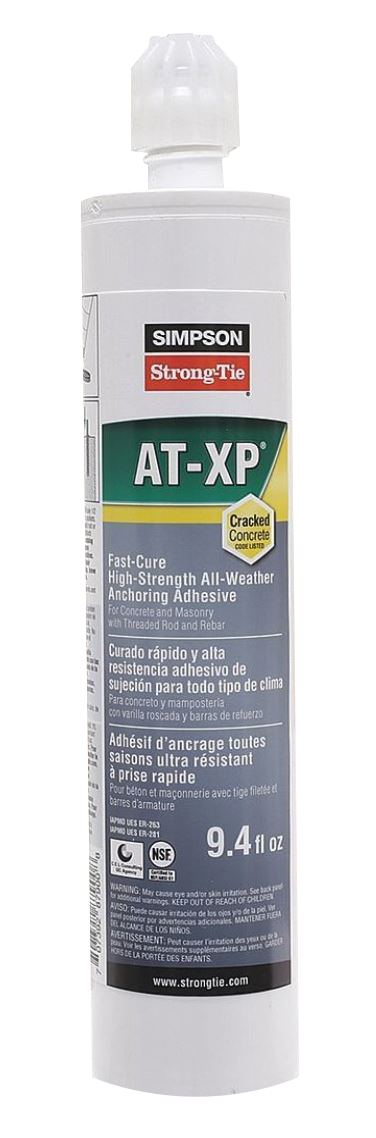

Simpson AT-XP
  • Acrylic Color: Grey/teal
  • 9.4oz costs $15.92
  • Technical PDF
  • Special dispenser required for the 30oz but not for the 9.4oz
  • Installable at 0F to 100F (-18C to 38C)
  • It is 76% of its strength at 150F
  • Cures at 0F (-18C) in 24 hours Cold temp install notes
  • Cures at 68F (20C) in 1 hours (gels up in 4 min!)
  • Water saturated applications require double the cure time
  • Opinion: Simpson’s version of acrylic. A lower temperature, quick drying glue that is a step above polyester and a step down from epoxy. Very runny in normal temps. Hitli’s Ice does colder temps but costs 4x more.

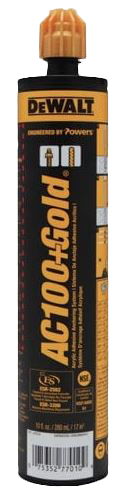

DeWalt AC100+ Gold
  • Vinylester Color: Gray
  • Product page
  • 10oz costs $15.00 to $20.00
  • Available in 10oz single tube and 28oz dual cartridge
  • Installable at 14F to 104F (-10C to 40C)
  • It maintains 85% strength at 105F (41C)
  • 18-month shelf life
  • Use to be Powers, now it is DeWalt
  • Cures at 14F (-10C) in 24 hours
  • Cures at 68F (20C) in 45 min
  • Cures at 104F (40C) in 15 min
  • Opinion: This seems to be the go-to glue for climbers probably because it cures in 15 minutes, anti-drip friendly and is a good price. Better move fast because your working time is only a minute or two. You may not die using this but the epoxy is going to give better, long-term results. It can be very sensitive to shelf life and storage temps. This is cold friendly and people bolt when it is too cold to climb.

Liquid Roc 500
  • Amine base epoxy
  • Color: Gray
  • Download tech sheet from product page
  • 24 month shelf life
  • Long term loading
  • Cures at 80F (26C) in 6 hours
  • Cures at 60F (15C) in 24 hours
  • Don’t use below 40F (4C) - like seriously. I was screwed in moab when doing our sandstone tests. It doesn’t come out of the nozzle.
  • ⅜” rod in a ½” hole at 4.5” embedment at 4000psi concrete
    • =9,540lbf tension
    • =5,810lbf sheer
  • Opinion: A comparable epoxy to Hilti 500 V3 when it is nice outside, but it is discontinued! It has been superseded by EP800.


Liquid Roc 300
  • It is a Polyester resin base
  • 9 month shelf life
  • Short term loading
  • 28oz double cartridge at $25ish (no single tubes)
  • Cures at 80F in 30min
  • Cures at 60F in 1 hour
  • Cures at 28F in 4 hours
  • Opinion: Don’t be a cheap ass… don’t use polyester!

GEBOFIX EPO PLUS RE
  • Sold by Raumer and Titan Climbing for about €22
  • Tech Specs
  • Gray color
  • Titan says comparable to Hilti 500 v3, not in working temps and times but maybe in end result. It is actually more like Simpson Set XP
  • Storage 24 months
  • Storage temps 5C to 35C
  • Working time at 50F or 10C is 2 hours
  • Working time at 104F or 40C is 5 minutes
  • Cures at 50F or 10C in 3 days
  • Cures at 104F or 40C in 4 hours
  • Requires special dispenser, also available on websites

GEBO Super Hybrid

  • Sold by Raumer for about €12
  • Tech Specs
  • I don’t think it is an epoxy but they throw the word “Certified” around a lot
  • This is a “healthy” version of glue but I still don’t recommend you eat it.
  • Storage 18 months
  • At -5C or 23F - 20min working time and 12 hour cure time
  • At 35C or 95F - 3 min working time and 20 minute cure time
  • Based on the temps and times, it sounds like a european version of Ac100, their Retail list calls in a vinylester.

Sikadur31

 Although not certified for anchors, it is certified for structural repairs in concrete, stone, etc. It is "the thing" in Southern Europe. It is epoxy, therefore super tough, with excellent bonding, long working time, etc. It sticks a lot, perfect to bolt overhangs, even at 35 °C. And is super cheap! The only (and big) downside is that you have to pre-mix it and put into some sort of container that you can squeeze. Get old silicone cartridges and caulking guns). It has stood the test of time. Climbers in Southern Europe whip everyday on CoSiRoC bolts from the early 1990's glued with Sikadur 31. Here is a VIDEO if you want to see what it looks like.

Capsules
Without testing the screw in style, I CANNOT recommend any of them. Those should not be “hand twisted” but rather attached to a drill and rotated... a lot! Raumer has an adapter that you can mechanically twist the bolt. The Powers Hammer Capsule specs seem impressive (dries fast, is strong and is cheap) though your bolt options are limited. Most options here are the substandard polyester glue that shouldn’t be used.

Liquid Roc 300 Hammer Capsule
  • For short term loading only
  • 10 Pack costs $30ish (be sure to check the size you need first)
  • Cure in 10min at 68F
  • Cures in 1 hour at 32F
  • 23F is as low as you can go
  • Only use square cut end on threaded rod
  • Opinion: The numbers sound good, the cure time is appealing, but this is polyester and so it isn’t as good as epoxy. Also, not all glue in bolts have a blunt end so they wouldn’t be able to be used on this. I DON’T RECOMMEND.

Liquid Roc 300 Capsule

 (spin install)
  • For short term loading only
  • 10 pack costs $30ish (be sure to check the size you need first)
  • Cure in 10min at 68F
  • Cures in 1 hour at 32F
  • 23F is as low as you can go
  • Pointed rod is critical
  • Specs require mechanical spinning
  • Opinion: This is the same thing as above, but the spin part of the install cannot be properly achieved without attaching the bolt to the drill and spinning it. I DON’T RECOMMEND.

Petzl Capsules

  • Ampoule Bat'Inox for 14mm Petzl Bat’Inox
  • Ampoule Collinox for 10mm Petzl Collinox
  • Polyester resin base
  • 3 year guarantee
  • Break tip with hammer, “twist bolt in 10x minimum”
  • Costs about $5 each, at that price you could install epoxy
  • Cures at 20C in 40min
  • Cures at 10C in 1 hour
  • Cures at -5C in 10 hours
  • UIAA rated for 15kn tension and 25kn sheer
  • Opinion: I don’t believe hand twisting these is sufficient so I cannot recommend them. It is also a substandard glue compared to epoxy. Why would you put in the most expensive glue in bolt into the cheapest glue, WHY Petzl???

Powers Hammer Capsule

  • Epoxy Acrylate Resin
  • Costs almost $30 or box of 10
  • Shelf life 2years
  • Hole can be damp but no standing water or frost
  • Cures at 68F in 1hour
  • Cures at 50F in 2hour
  • Cures at 32F in 5hours
  • ½” diameter 4 ¼” embedment in 4,000 PSI concrete
    • = 10,240lbf Tension
    • = 10,720lbf Shear
  • Opinion: If you are going to use a capsule, this seems to be a good one. It doesn’t require mechanical spinning, it is a form of epoxy, dries quick enough and is a good price.

What's Next?

Chapter #11 - The Book of Installing Glue In’s

You can always go back to the main part of the BIG WALL BIBLE HERE.
