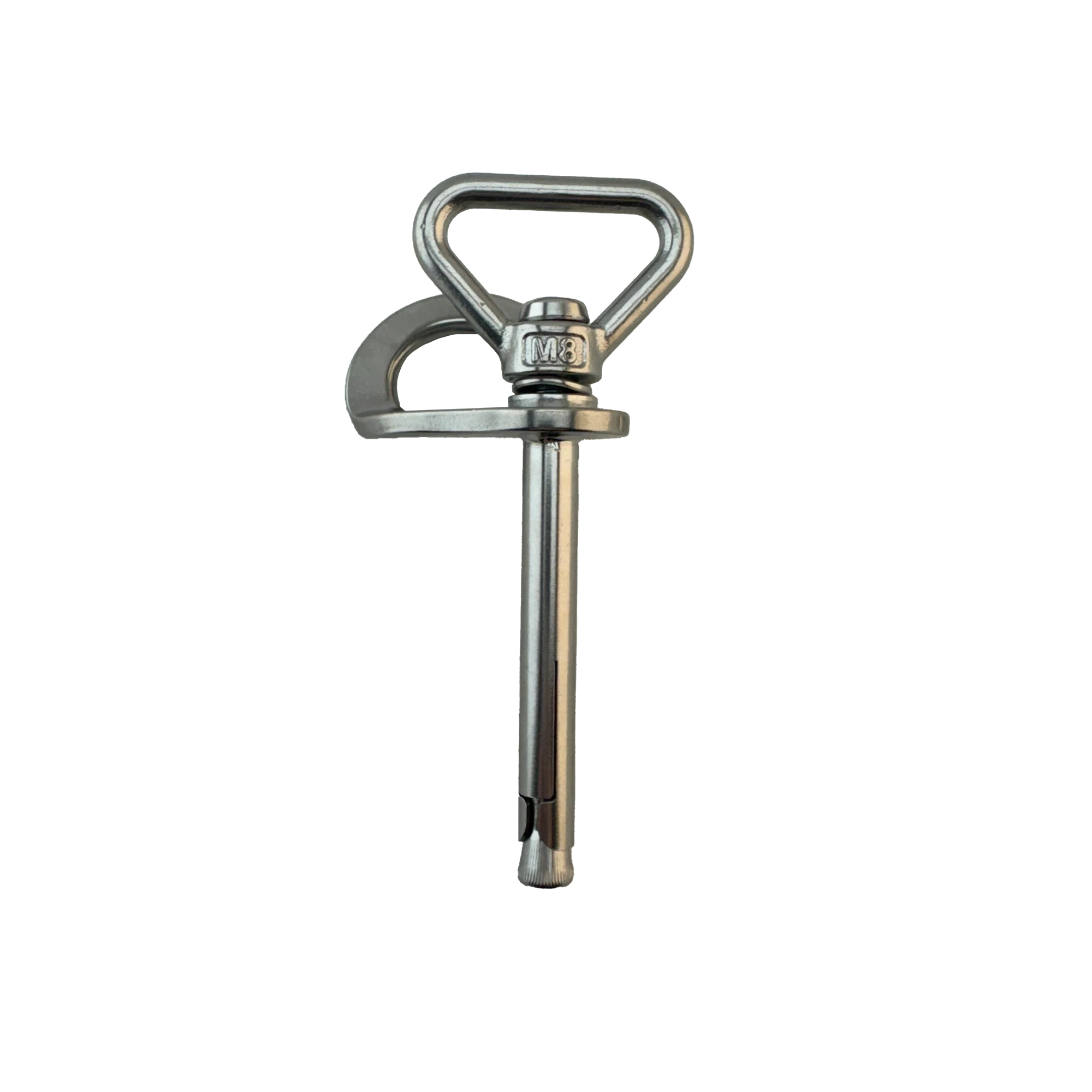

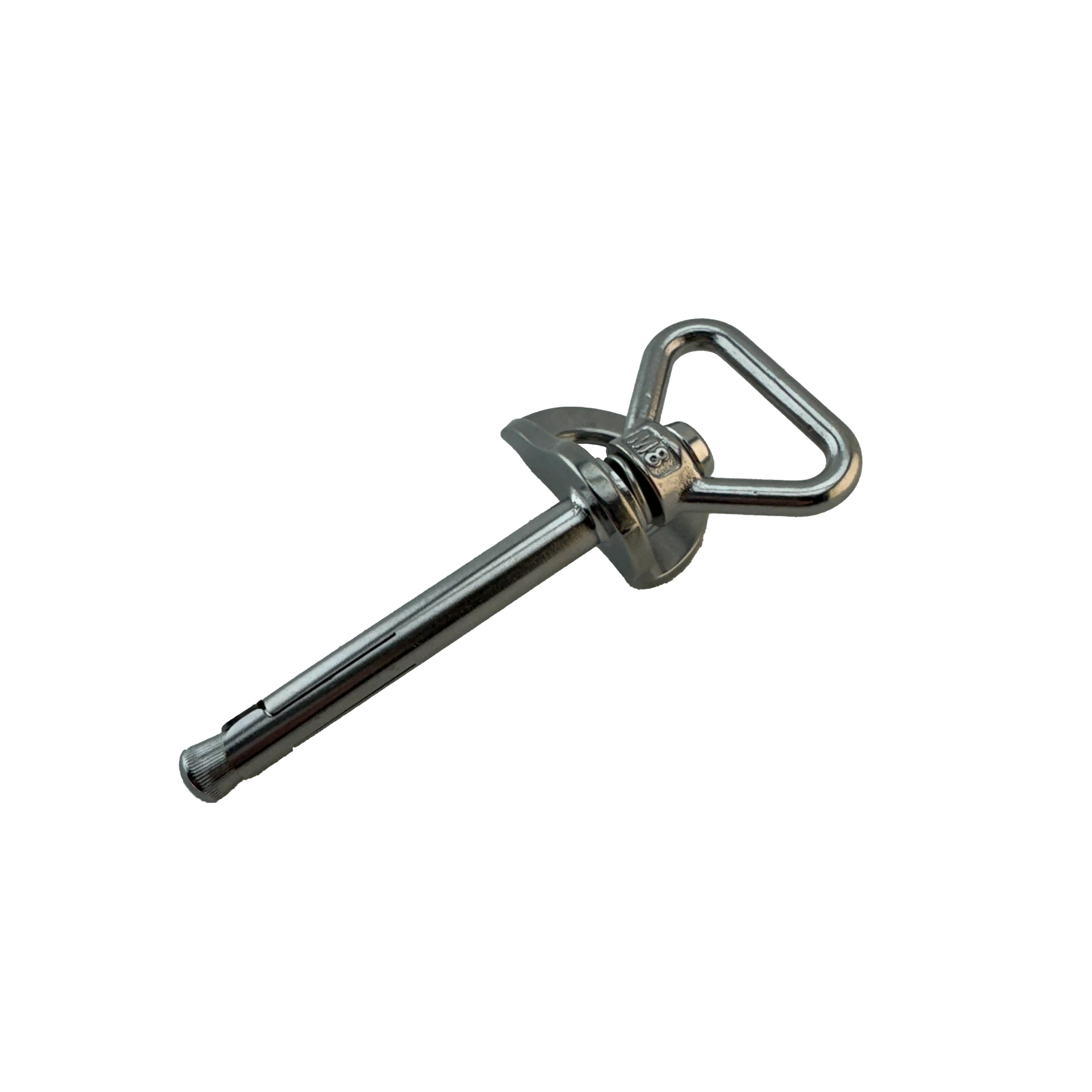

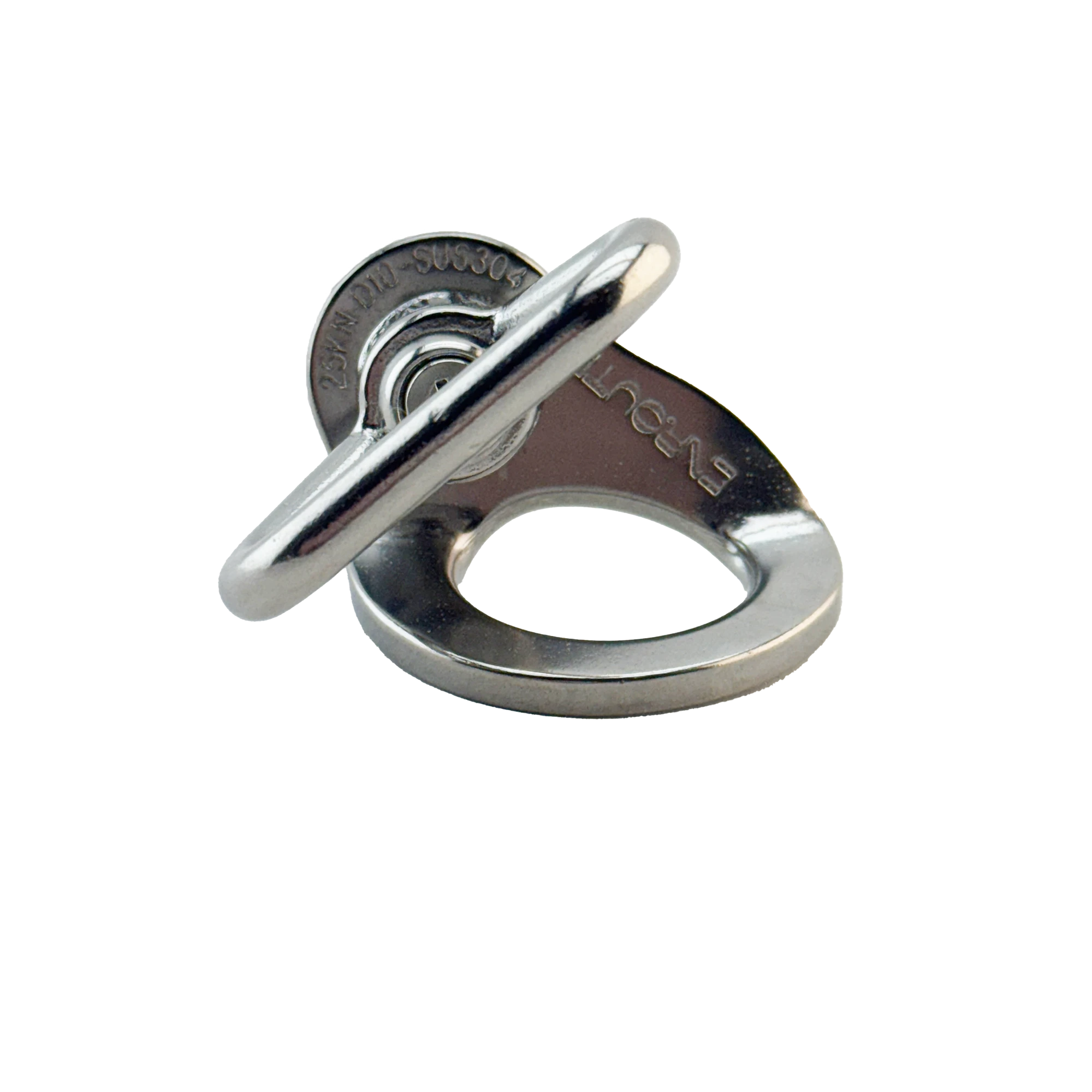

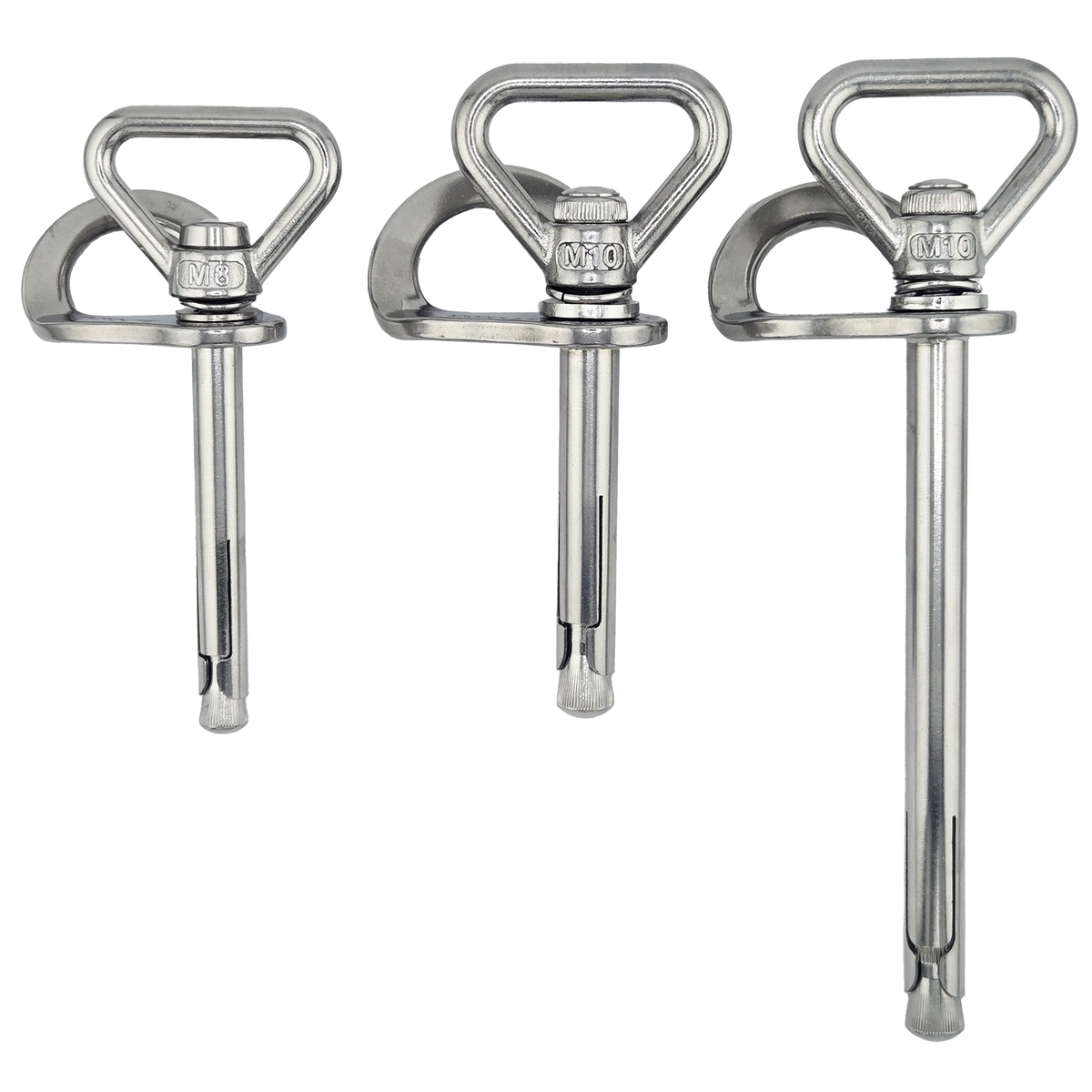

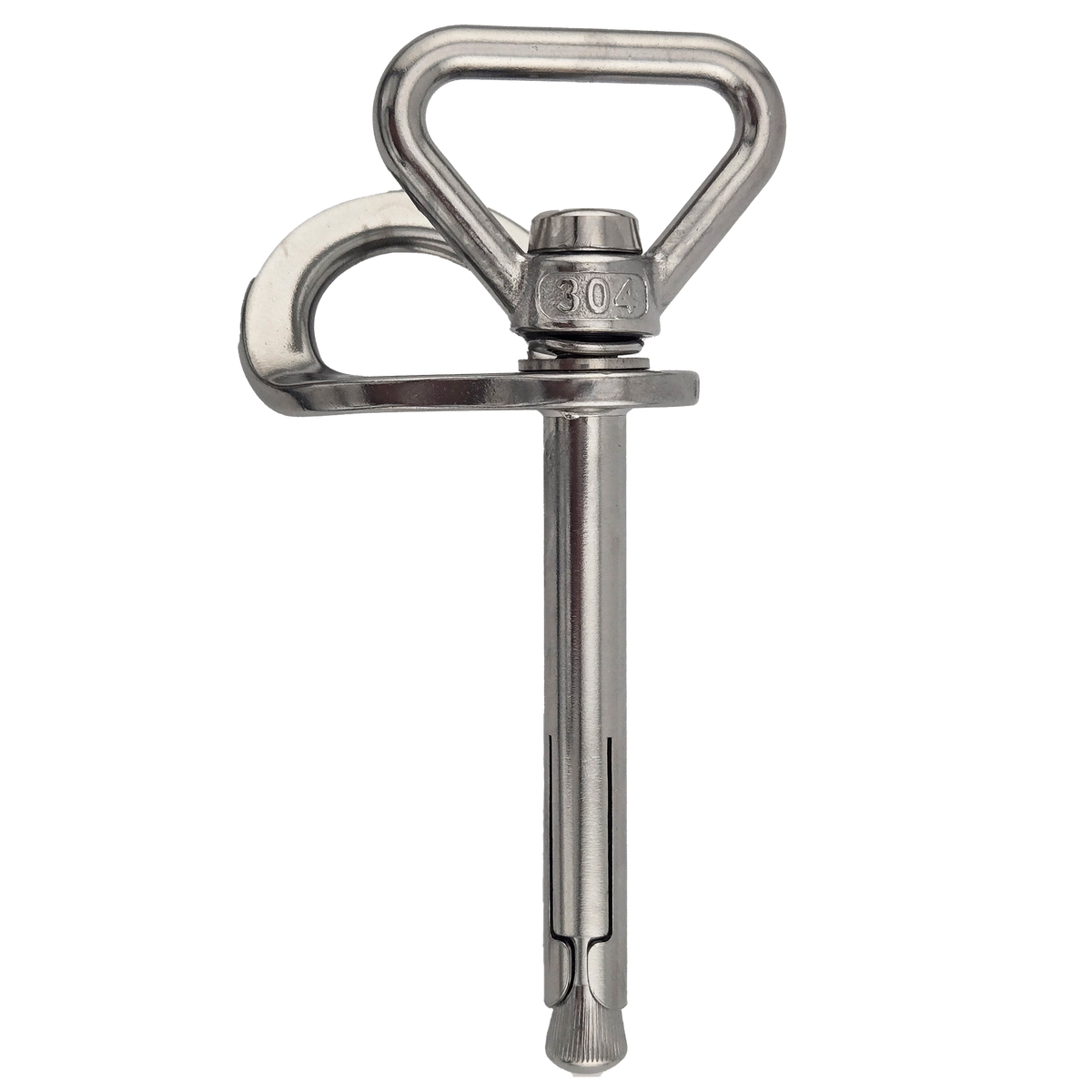

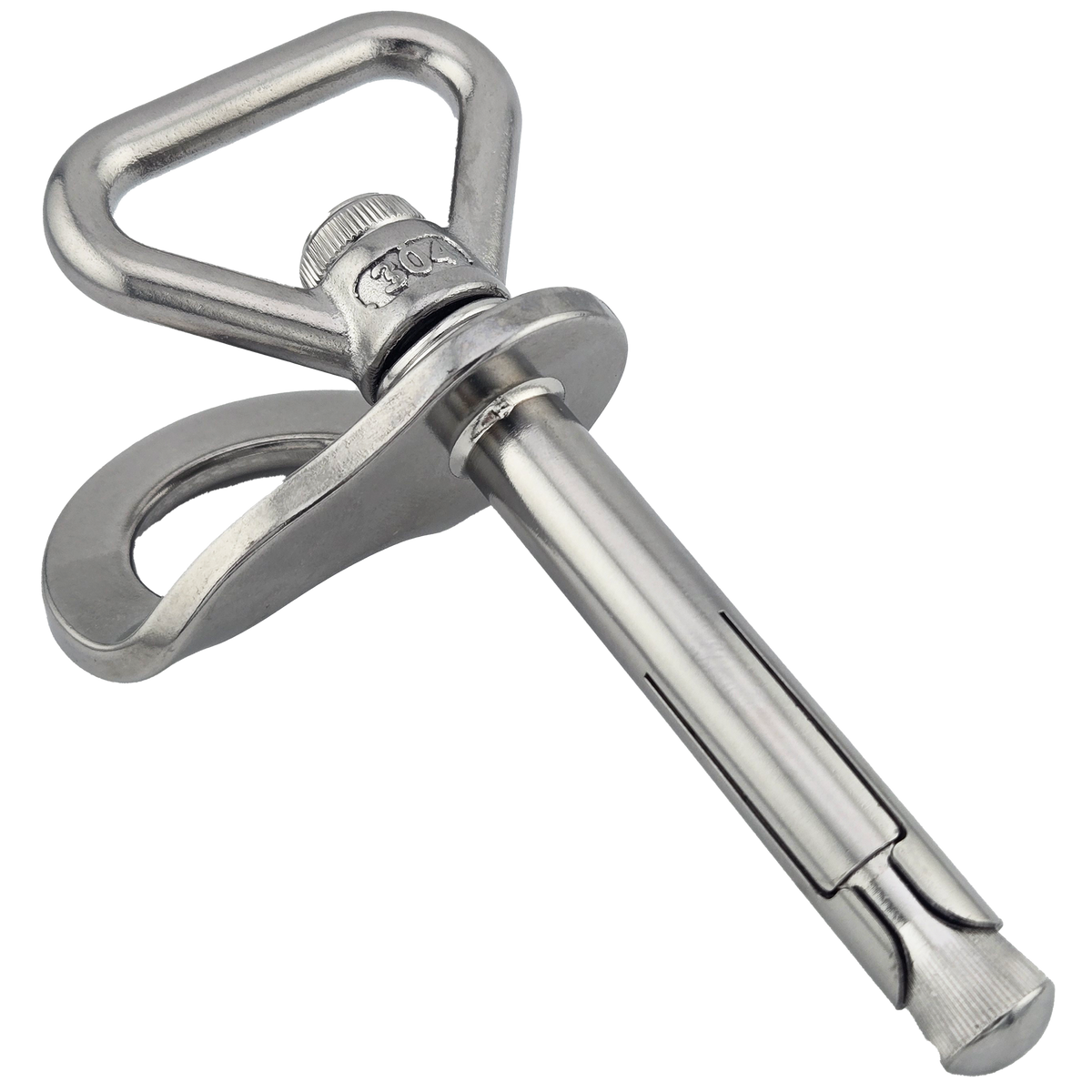

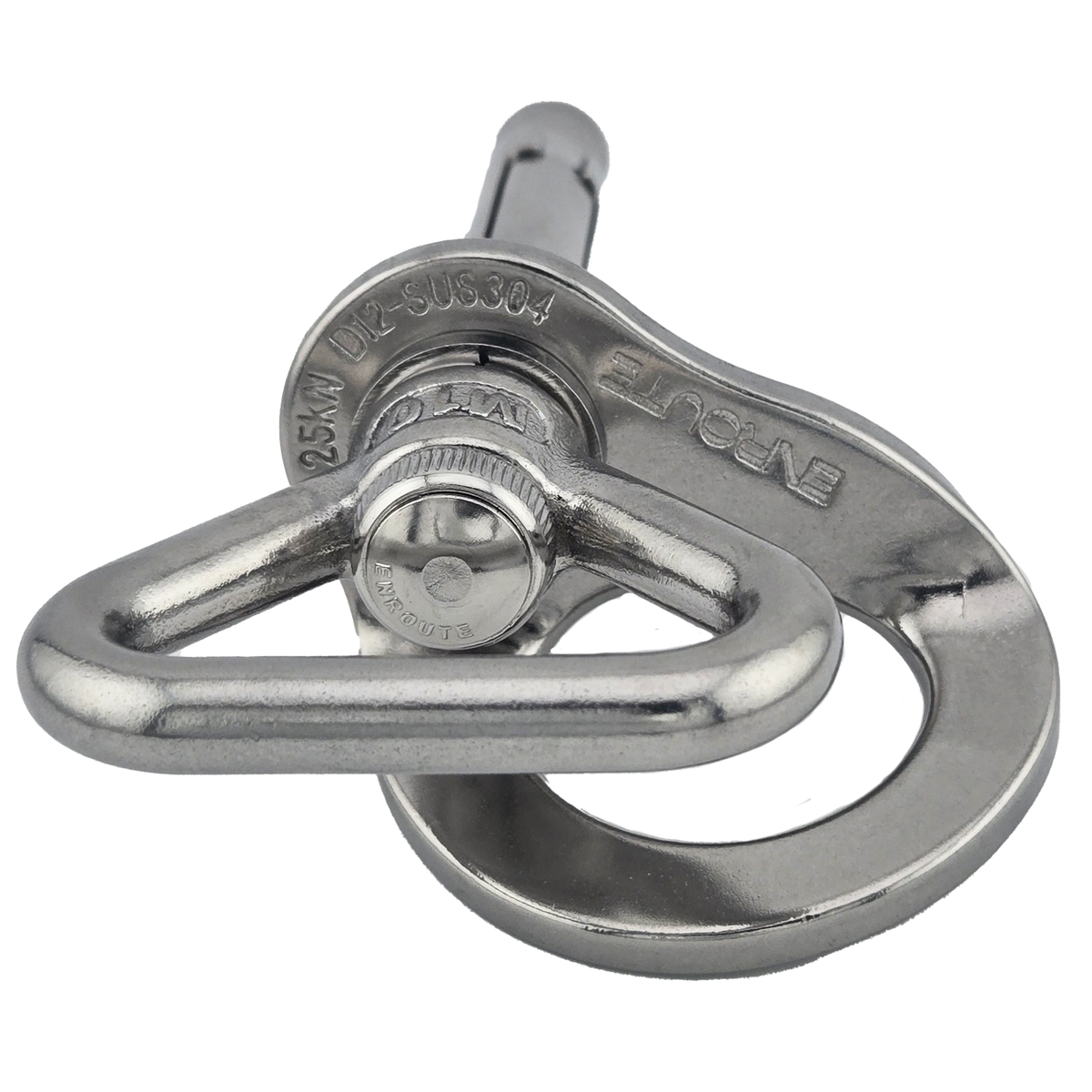

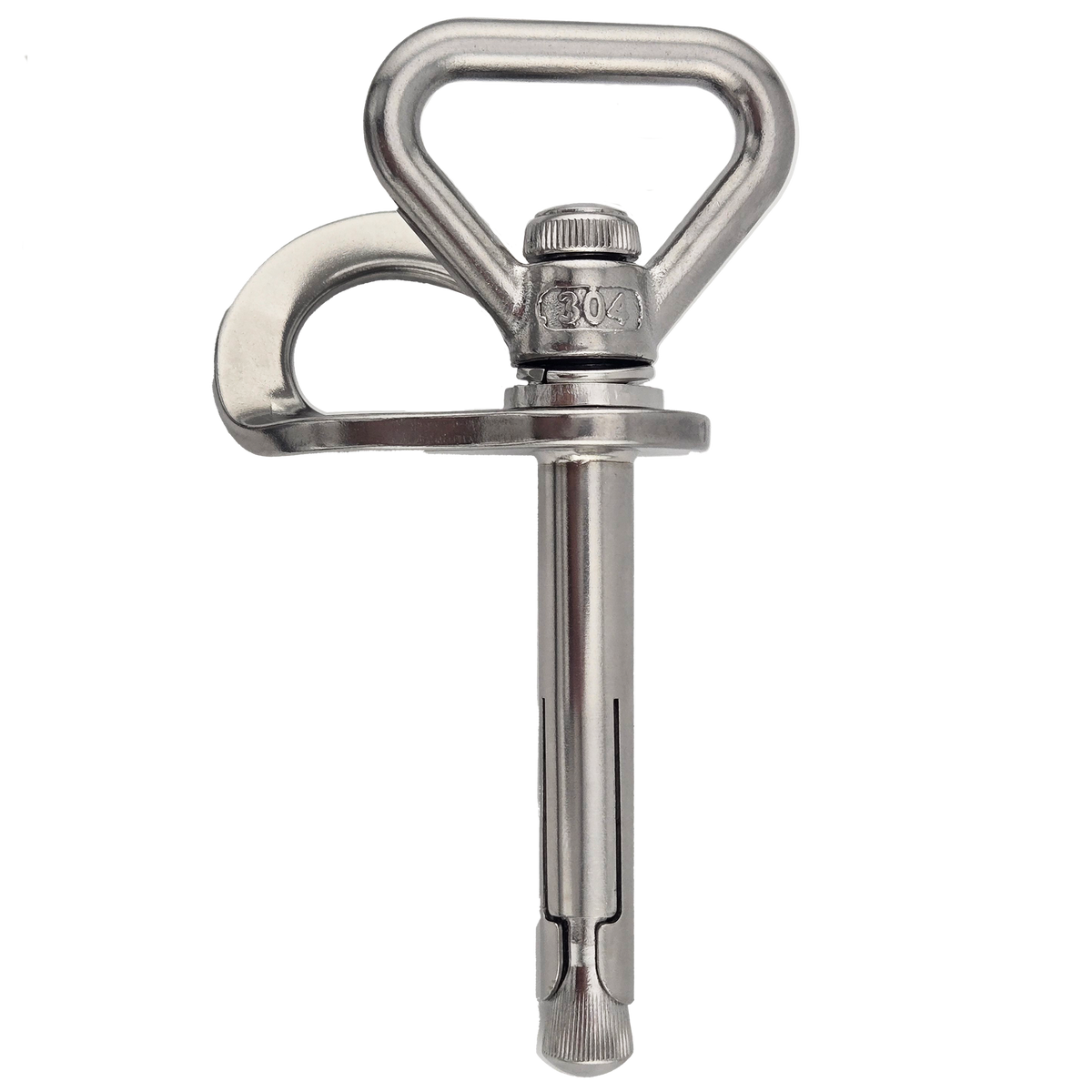

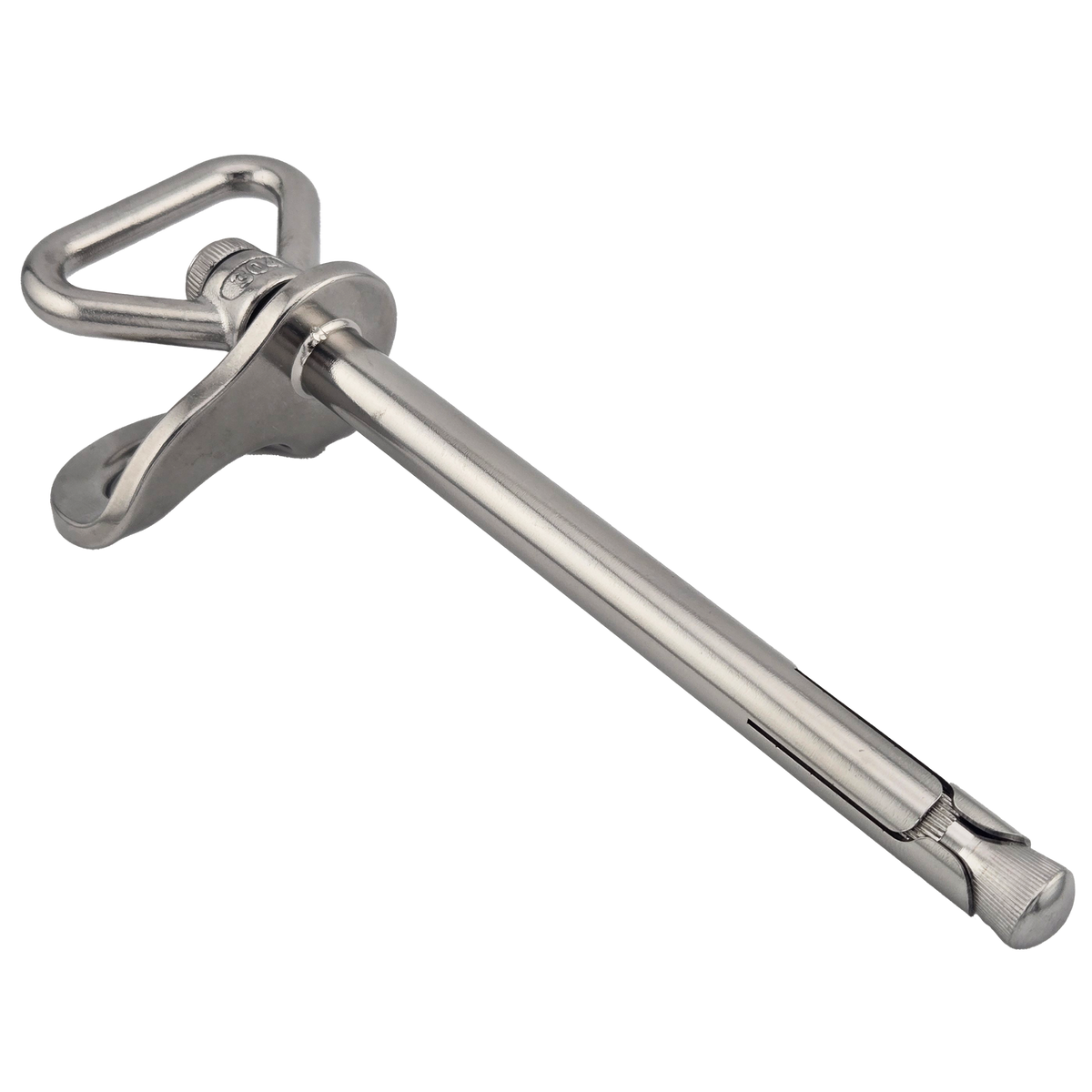

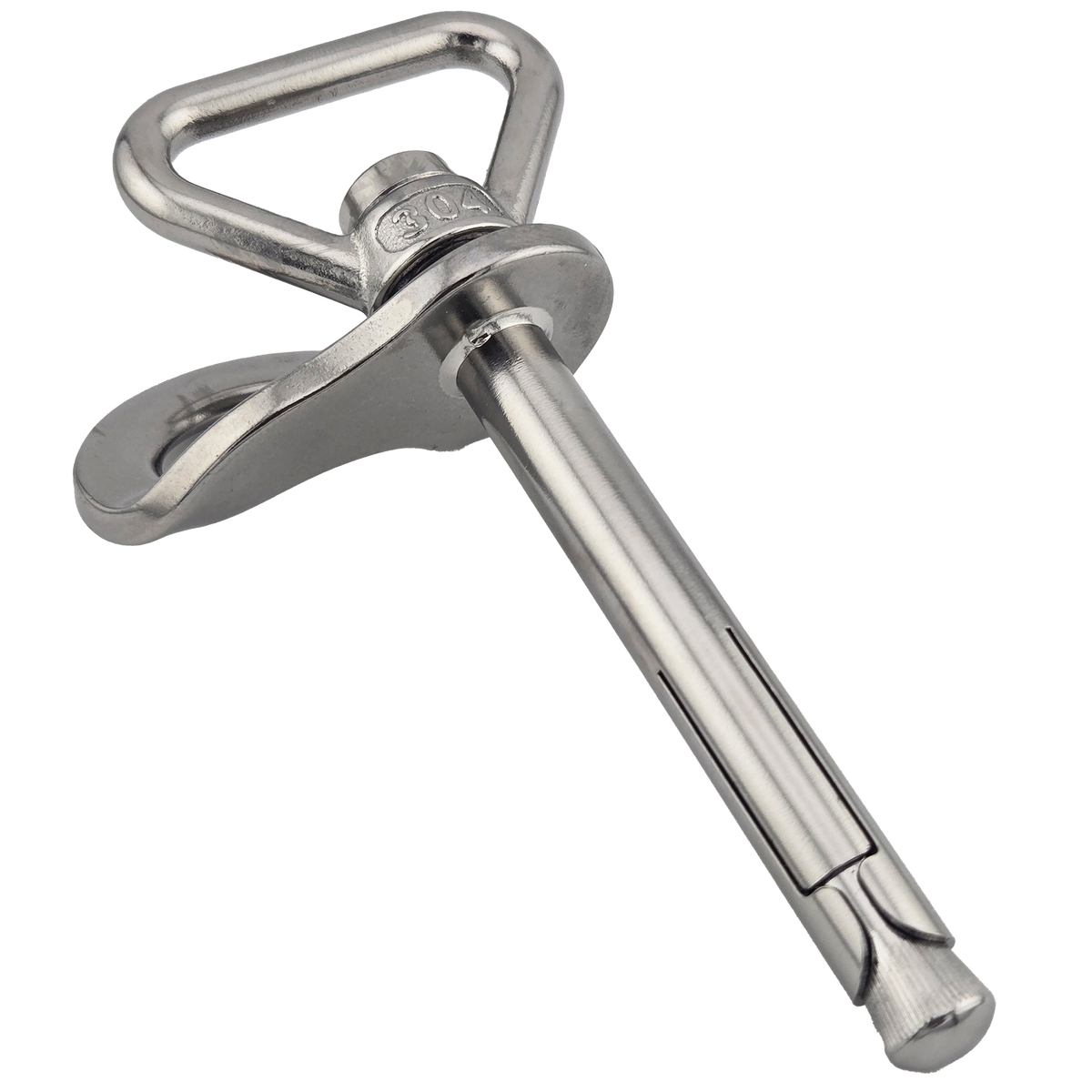

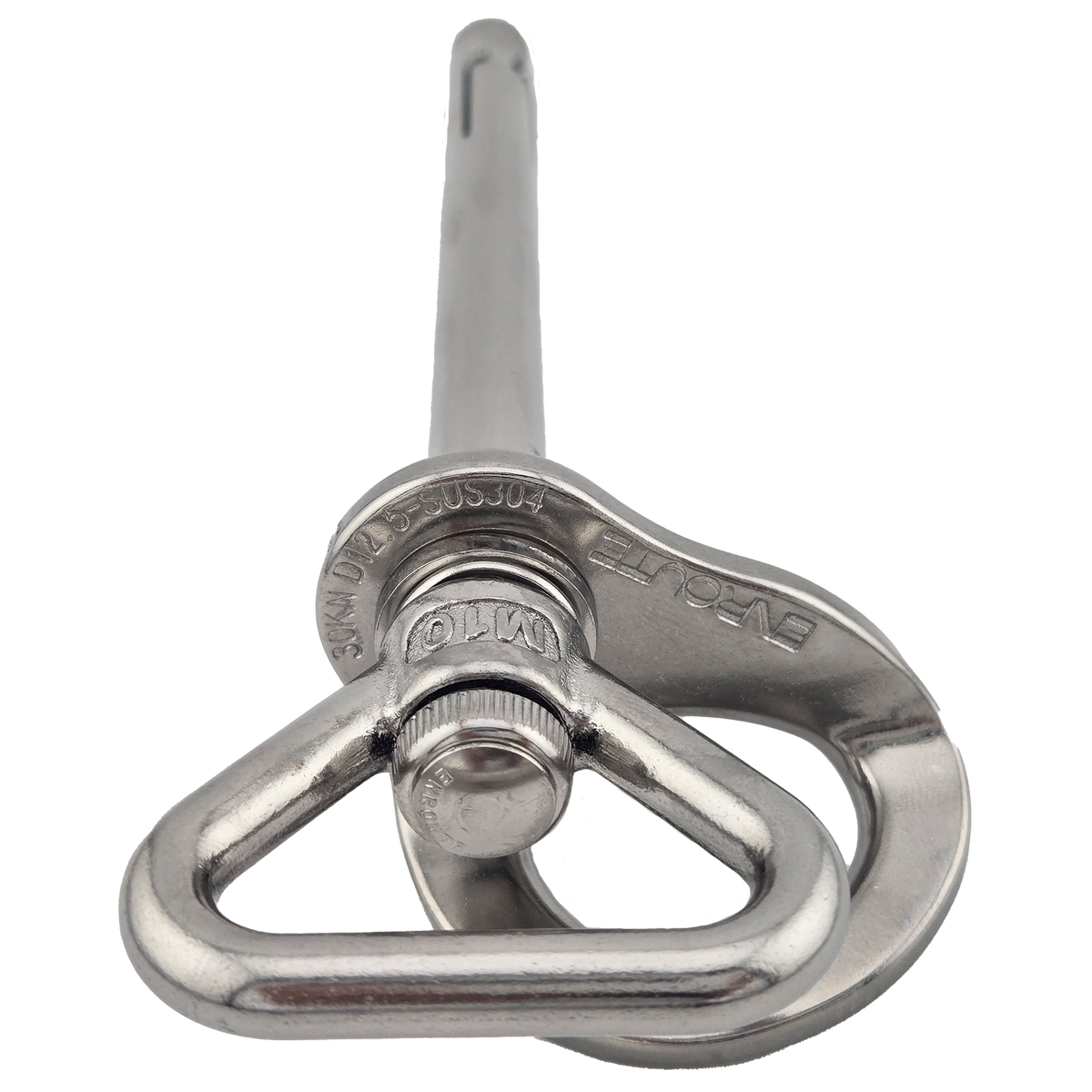

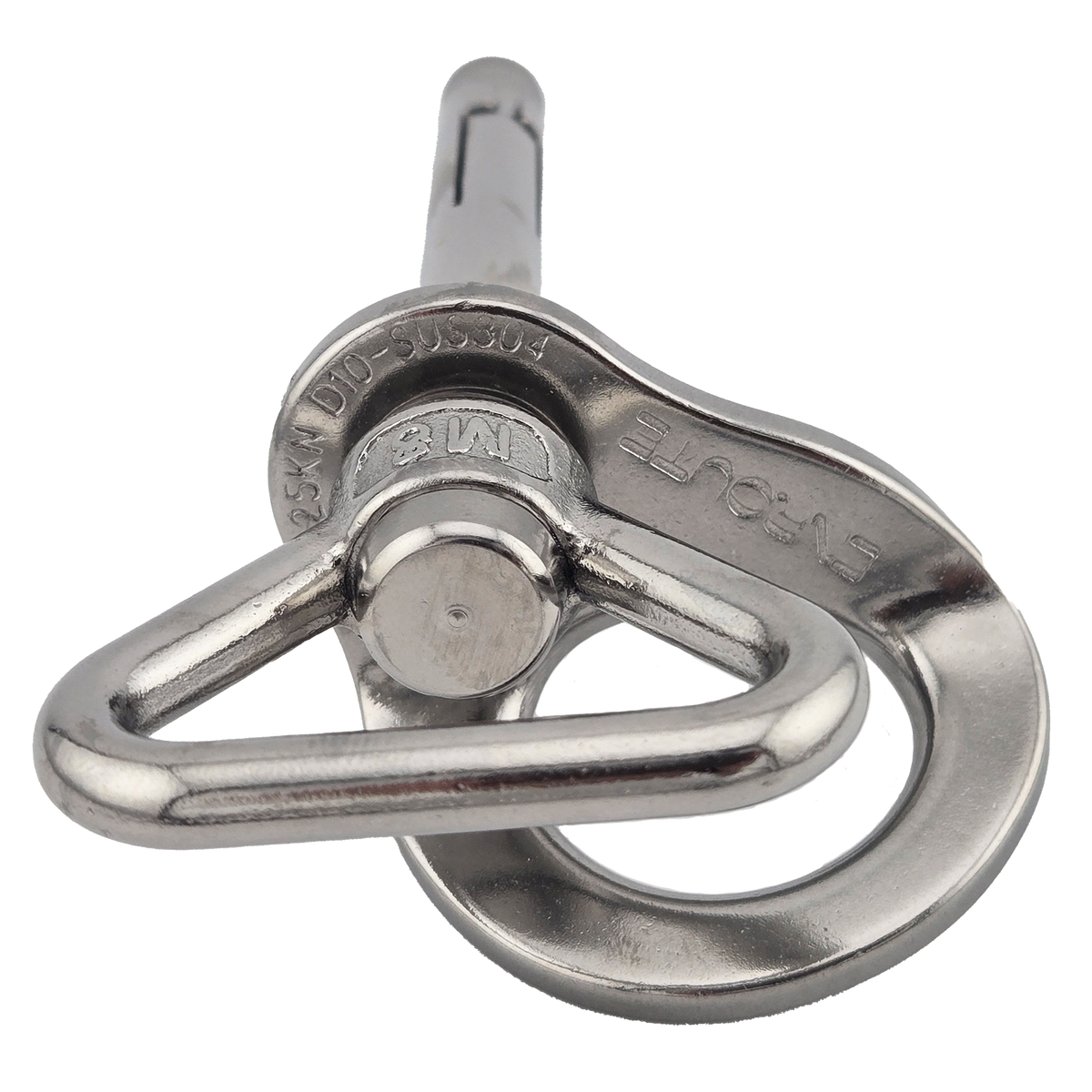

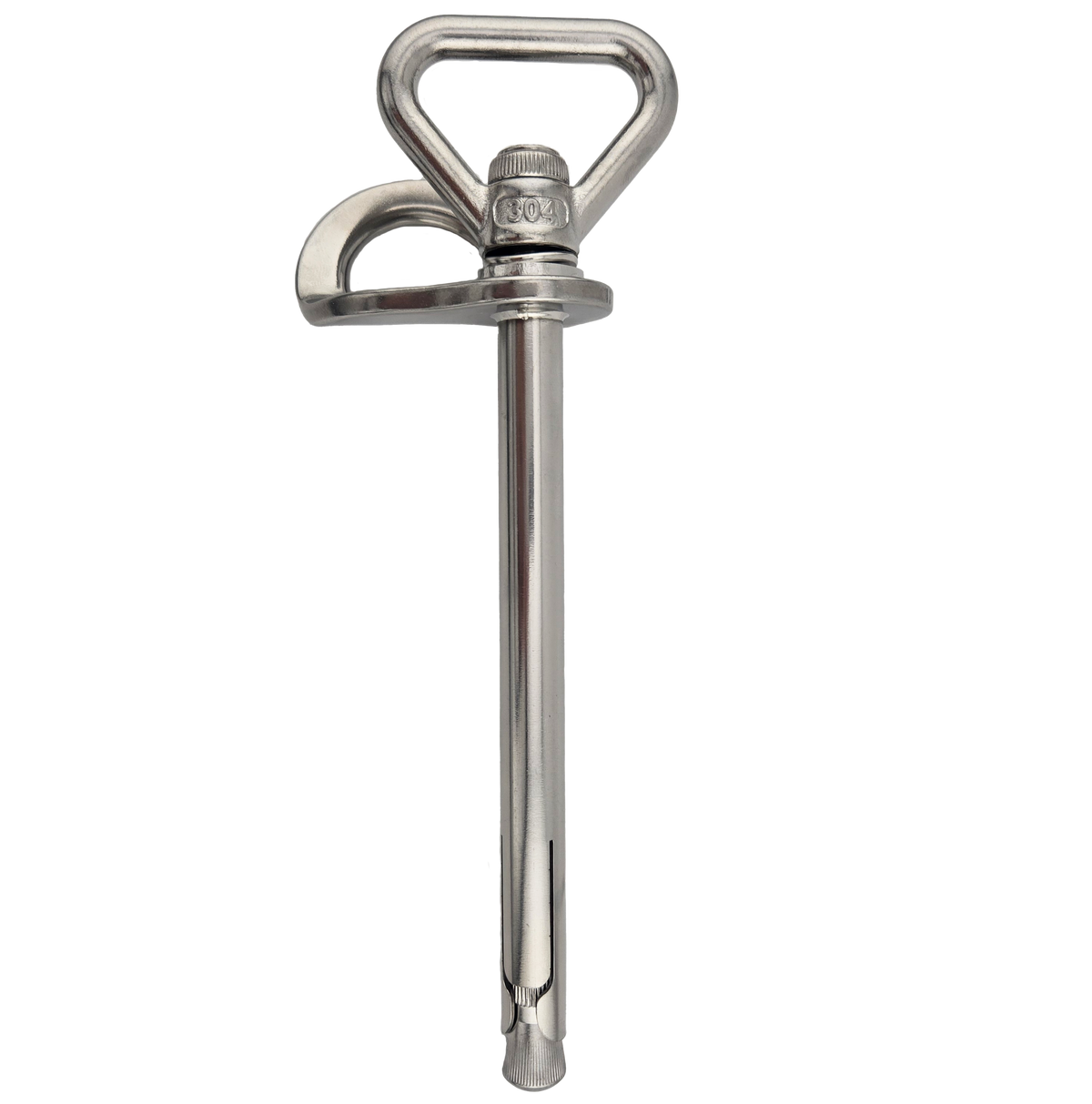

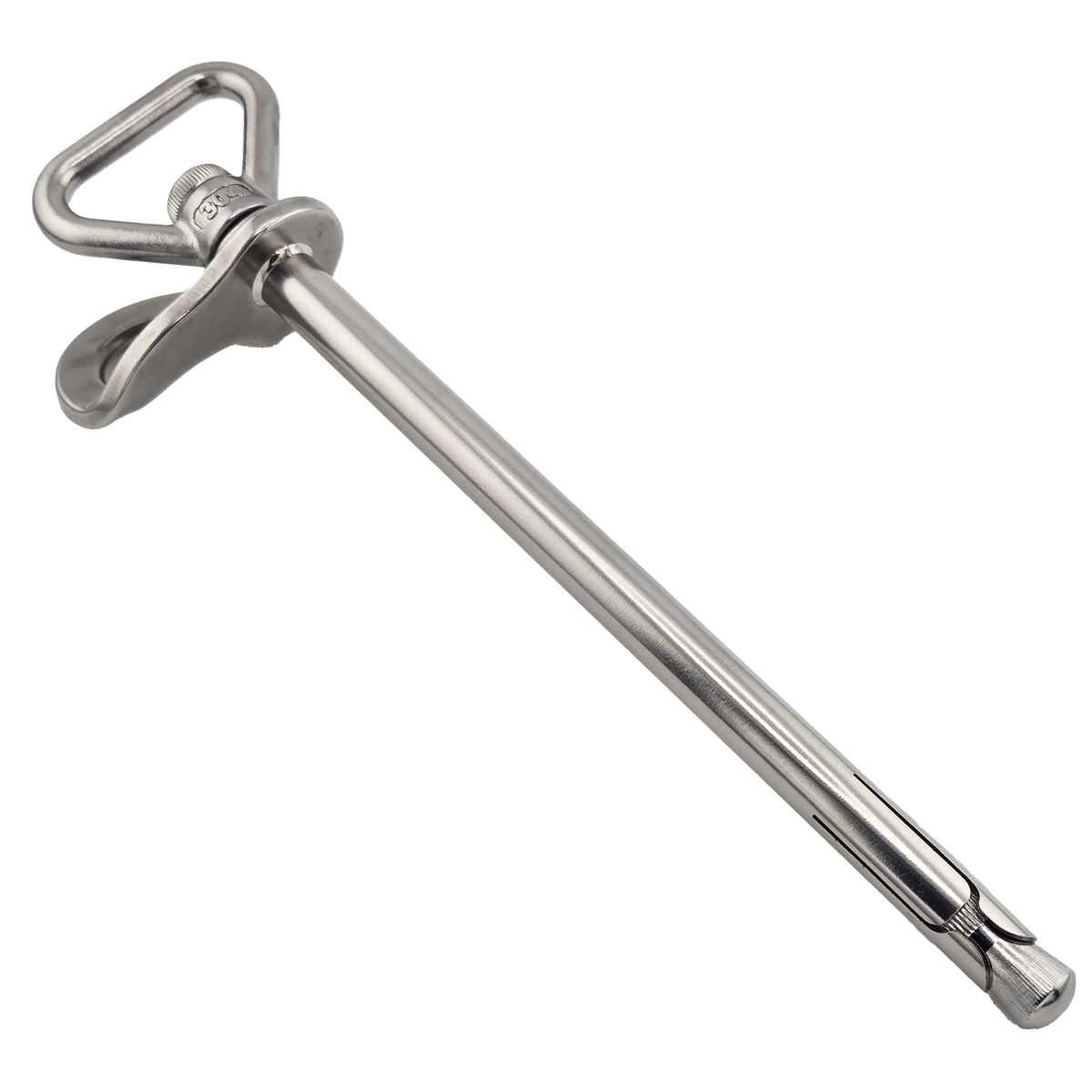

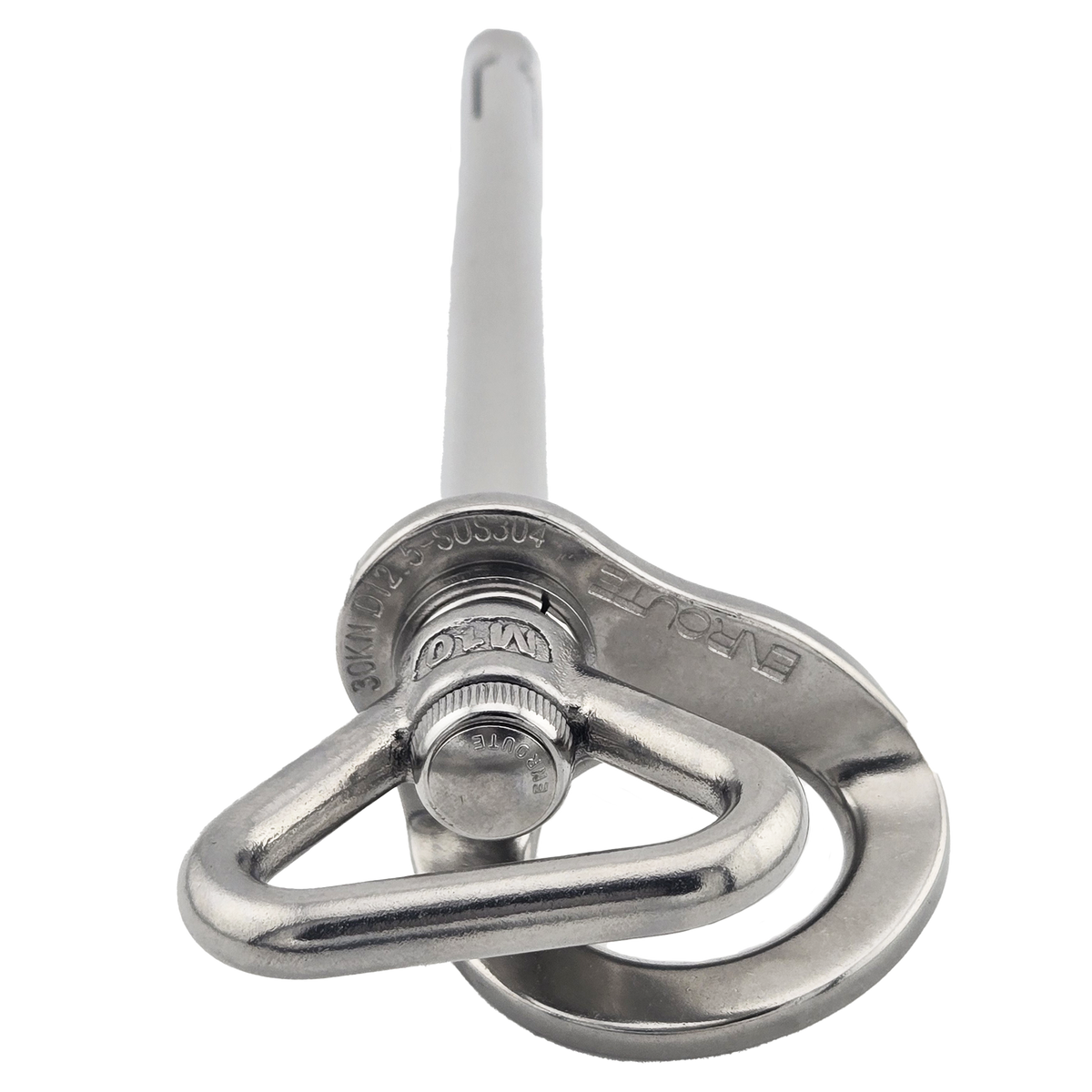

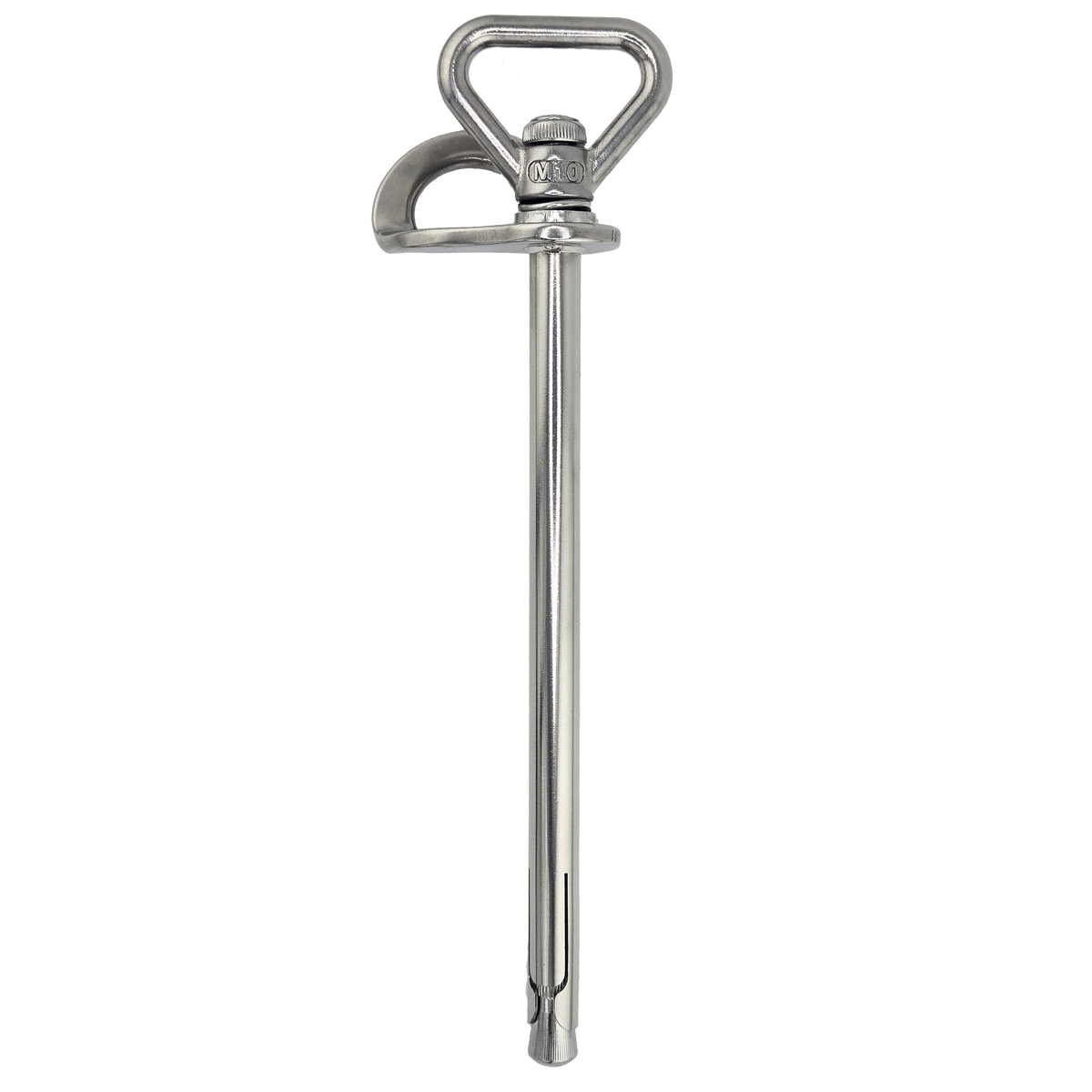

{"id":10047650496827,"title":"Stainless Steel Removable Bolts","handle":"stainless-steel-removable-bolts","description":"\u003cp\u003eThese stainless steel removable bolts are becoming a very popular choice due to their more simplistic design, all the same material, and one-piece construction.\u003c\/p\u003e\n\u003cp\u003eThe threaded shaft is made of 2205 Duplex stainless steel which is harder and more wear-resistant. The rest of the components like the hanger, sleeve, eye nut, etc. are all 304 stainless steel. The hanger is welded onto the sleeve. \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eInstallation Notes:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eFor primary anchor installations, use multiple points for redundancy.\u003c\/li\u003e\n\u003cli\u003eUse the appropriate diameter 4-cutter SDS drill bit.\u003c\/li\u003e\n\u003cli\u003eBlow and brush your holes clean before installing the bolt.\u003c\/li\u003e\n\u003cli\u003eOrientate the hanger in the direction of the expected load.\u003c\/li\u003e\n\u003cli\u003eTo tighten the bolt, rotate the ring nut by hand; the spring washer will compress.\u003c\/li\u003e\n\u003cli\u003eFor removal: First loosen the ring nut (but don't unscrew it so much where it butts tightly against the cap). Second, give the delta nut a tap (as this will push the cone out of the sleeve). Then wiggle the bolt out by the hanger.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003eThese removable bolts are meant for professionals that are able to discern the substrate is appropriate quality and hardness for sleeve anchors of a 10mm*80mm size. And are able to appropriately install \u0026amp; and inspect the installation. \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eYou can watch Climbing Taiwan's break tests in full \u003cspan style=\"color: rgb(43, 0, 255);\"\u003e\u003ca href=\"https:\/\/youtu.be\/ErYt8s5exRs?si=2BL7Nasb7NabkoPu\" style=\"color: rgb(43, 0, 255);\"\u003eHERE\u003c\/a\u003e\u003c\/span\u003e. Results in shear were 38.58 kN (pull-out failure), in tension 23.99 kN ( pull-out failure). The delta ring nut broke in tension at 16.6 kN.\u003c\/p\u003e\n\u003cp\u003eAnd here's a really cool review from a caver\/mechanical engineer \u003cspan style=\"color: rgb(43, 0, 255);\"\u003e\u003ca style=\"color: rgb(43, 0, 255);\" href=\"https:\/\/youtu.be\/qFv9BHpbR7U?si=HT9dyJQeQfe8j3ja\"\u003eHERE\u003c\/a\u003e\u003c\/span\u003e. The accompanying article is \u003ca href=\"https:\/\/themultidisciplinarian.com\/2025\/11\/06\/climbing-taiwan-removable-bolts-review\/\"\u003eHERE\u003c\/a\u003e. \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eThe threaded end cap has Loctite on it. With some vice grips on the knurled shaft end and another pair on the cap, the thread locker seal can be broken. Then they can also be disassembled to switch out parts for repair or modification. Though we only recommend this for tool-savvy individuals that are fully cognizant of what they're doing and the implications. \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e","published_at":"2025-04-10T09:02:27-07:00","created_at":"2025-03-23T09:50:35-07:00","vendor":"Climbing Taiwan","type":"Bolts","tags":["Bargain Hardware","bolting hardware","bolting-plus-item","Climbing Taiwan","Removable Bolts","Sleeve Bolts","Sport"],"price":2633,"price_min":2633,"price_max":2633,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":50126247362875,"title":"10mm \/ 75mm","option1":"10mm","option2":"75mm","option3":null,"sku":"CTW-RBER-M8100","requires_shipping":true,"taxable":true,"featured_image":{"id":52855234527547,"product_id":10047650496827,"position":2,"created_at":"2025-04-10T08:58:24-07:00","updated_at":"2025-08-07T15:49:00-07:00","alt":null,"width":2000,"height":2000,"src":"\/\/hownot2.com\/cdn\/shop\/files\/10mmx80removablebolt_db350f38-8d82-4dda-bc0a-f829d9fdabf9.webp?v=1754606940","variant_ids":[50126247362875]},"available":true,"name":"Stainless Steel Removable Bolts - 10mm \/ 75mm","public_title":"10mm \/ 75mm","options":["10mm","75mm"],"price":2633,"weight":143,"compare_at_price":null,"inventory_management":"shopify","barcode":"47362875","featured_media":{"alt":null,"id":43552777470267,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/hownot2.com\/cdn\/shop\/files\/10mmx80removablebolt_db350f38-8d82-4dda-bc0a-f829d9fdabf9.webp?v=1754606940"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/hownot2.com\/cdn\/shop\/files\/10mmx80removablebolt1_eff36963-de31-4c74-9e9c-ba5a8abd4af6.webp?v=1754606939","\/\/hownot2.com\/cdn\/shop\/files\/10mmx80removablebolt_db350f38-8d82-4dda-bc0a-f829d9fdabf9.webp?v=1754606940","\/\/hownot2.com\/cdn\/shop\/files\/10mmx80removabkebolt2_0331e18f-f3f0-4a8a-982b-198bb643fcad.webp?v=1754606940"],"featured_image":"\/\/hownot2.com\/cdn\/shop\/files\/10mmx80removablebolt1_eff36963-de31-4c74-9e9c-ba5a8abd4af6.webp?v=1754606939","options":["Diameter","Length"],"media":[{"alt":null,"id":43552777371963,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/hownot2.com\/cdn\/shop\/files\/10mmx80removablebolt1_eff36963-de31-4c74-9e9c-ba5a8abd4af6.webp?v=1754606939"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/hownot2.com\/cdn\/shop\/files\/10mmx80removablebolt1_eff36963-de31-4c74-9e9c-ba5a8abd4af6.webp?v=1754606939","width":2000},{"alt":null,"id":43552777470267,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/hownot2.com\/cdn\/shop\/files\/10mmx80removablebolt_db350f38-8d82-4dda-bc0a-f829d9fdabf9.webp?v=1754606940"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/hownot2.com\/cdn\/shop\/files\/10mmx80removablebolt_db350f38-8d82-4dda-bc0a-f829d9fdabf9.webp?v=1754606940","width":2000},{"alt":null,"id":43552777306427,"position":3,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/hownot2.com\/cdn\/shop\/files\/10mmx80removabkebolt2_0331e18f-f3f0-4a8a-982b-198bb643fcad.webp?v=1754606940"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/hownot2.com\/cdn\/shop\/files\/10mmx80removabkebolt2_0331e18f-f3f0-4a8a-982b-198bb643fcad.webp?v=1754606940","width":2000},{"alt":null,"id":46126004732219,"position":4,"preview_image":{"aspect_ratio":0.563,"height":1920,"width":1080,"src":"\/\/hownot2.com\/cdn\/shop\/files\/preview_images\/7c741984ba804af8bd352dd40055ccb1.thumbnail.0000000000.jpg?v=1761577636"},"aspect_ratio":0.563,"duration":60000,"media_type":"video","sources":[{"format":"mp4","height":480,"mime_type":"video\/mp4","url":"\/\/hownot2.com\/cdn\/shop\/videos\/c\/vp\/7c741984ba804af8bd352dd40055ccb1\/7c741984ba804af8bd352dd40055ccb1.SD-480p-1.5Mbps-60990835.mp4?v=0","width":270},{"format":"mp4","height":1080,"mime_type":"video\/mp4","url":"\/\/hownot2.com\/cdn\/shop\/videos\/c\/vp\/7c741984ba804af8bd352dd40055ccb1\/7c741984ba804af8bd352dd40055ccb1.HD-1080p-7.2Mbps-60990835.mp4?v=0","width":606},{"format":"mp4","height":720,"mime_type":"video\/mp4","url":"\/\/hownot2.com\/cdn\/shop\/videos\/c\/vp\/7c741984ba804af8bd352dd40055ccb1\/7c741984ba804af8bd352dd40055ccb1.HD-720p-4.5Mbps-60990835.mp4?v=0","width":404},{"format":"m3u8","height":1080,"mime_type":"application\/x-mpegURL","url":"\/\/hownot2.com\/cdn\/shop\/videos\/c\/vp\/7c741984ba804af8bd352dd40055ccb1\/7c741984ba804af8bd352dd40055ccb1.m3u8?v=0","width":606}]},{"alt":null,"id":47559194444091,"position":5,"preview_image":{"aspect_ratio":0.563,"height":1920,"width":1080,"src":"\/\/hownot2.com\/cdn\/shop\/files\/preview_images\/02893fd0263e426986fb00c1da2bf132.thumbnail.0000000000.jpg?v=1772782954"},"aspect_ratio":0.563,"duration":89000,"media_type":"video","sources":[{"format":"mp4","height":480,"mime_type":"video\/mp4","url":"\/\/hownot2.com\/cdn\/shop\/videos\/c\/vp\/02893fd0263e426986fb00c1da2bf132\/02893fd0263e426986fb00c1da2bf132.SD-480p-1.5Mbps-77284917.mp4?v=0","width":270},{"format":"mp4","height":1080,"mime_type":"video\/mp4","url":"\/\/hownot2.com\/cdn\/shop\/videos\/c\/vp\/02893fd0263e426986fb00c1da2bf132\/02893fd0263e426986fb00c1da2bf132.HD-1080p-7.2Mbps-77284917.mp4?v=0","width":606},{"format":"mp4","height":720,"mime_type":"video\/mp4","url":"\/\/hownot2.com\/cdn\/shop\/videos\/c\/vp\/02893fd0263e426986fb00c1da2bf132\/02893fd0263e426986fb00c1da2bf132.HD-720p-4.5Mbps-77284917.mp4?v=0","width":404},{"format":"m3u8","height":1080,"mime_type":"application\/x-mpegURL","url":"\/\/hownot2.com\/cdn\/shop\/videos\/c\/vp\/02893fd0263e426986fb00c1da2bf132\/02893fd0263e426986fb00c1da2bf132.m3u8?v=0","width":606}]}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eThese stainless steel removable bolts are becoming a very popular choice due to their more simplistic design, all the same material, and one-piece construction.\u003c\/p\u003e\n\u003cp\u003eThe threaded shaft is made of 2205 Duplex stainless steel which is harder and more wear-resistant. The rest of the components like the hanger, sleeve, eye nut, etc. are all 304 stainless steel. The hanger is welded onto the sleeve. \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eInstallation Notes:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eFor primary anchor installations, use multiple points for redundancy.\u003c\/li\u003e\n\u003cli\u003eUse the appropriate diameter 4-cutter SDS drill bit.\u003c\/li\u003e\n\u003cli\u003eBlow and brush your holes clean before installing the bolt.\u003c\/li\u003e\n\u003cli\u003eOrientate the hanger in the direction of the expected load.\u003c\/li\u003e\n\u003cli\u003eTo tighten the bolt, rotate the ring nut by hand; the spring washer will compress.\u003c\/li\u003e\n\u003cli\u003eFor removal: First loosen the ring nut (but don't unscrew it so much where it butts tightly against the cap). Second, give the delta nut a tap (as this will push the cone out of the sleeve). Then wiggle the bolt out by the hanger.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003eThese removable bolts are meant for professionals that are able to discern the substrate is appropriate quality and hardness for sleeve anchors of a 10mm*80mm size. And are able to appropriately install \u0026amp; and inspect the installation. \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eYou can watch Climbing Taiwan's break tests in full \u003cspan style=\"color: rgb(43, 0, 255);\"\u003e\u003ca href=\"https:\/\/youtu.be\/ErYt8s5exRs?si=2BL7Nasb7NabkoPu\" style=\"color: rgb(43, 0, 255);\"\u003eHERE\u003c\/a\u003e\u003c\/span\u003e. Results in shear were 38.58 kN (pull-out failure), in tension 23.99 kN ( pull-out failure). The delta ring nut broke in tension at 16.6 kN.\u003c\/p\u003e\n\u003cp\u003eAnd here's a really cool review from a caver\/mechanical engineer \u003cspan style=\"color: rgb(43, 0, 255);\"\u003e\u003ca style=\"color: rgb(43, 0, 255);\" href=\"https:\/\/youtu.be\/qFv9BHpbR7U?si=HT9dyJQeQfe8j3ja\"\u003eHERE\u003c\/a\u003e\u003c\/span\u003e. The accompanying article is \u003ca href=\"https:\/\/themultidisciplinarian.com\/2025\/11\/06\/climbing-taiwan-removable-bolts-review\/\"\u003eHERE\u003c\/a\u003e. \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e\n\u003cp\u003eThe threaded end cap has Loctite on it. With some vice grips on the knurled shaft end and another pair on the cap, the thread locker seal can be broken. Then they can also be disassembled to switch out parts for repair or modification. Though we only recommend this for tool-savvy individuals that are fully cognizant of what they're doing and the implications. \u003c\/p\u003e\n\u003cp\u003e \u003c\/p\u003e"}
