Smart, fast, and safe! The LineScale 3i design was influenced by HowNOT2 and crowdfunded with the HowNOT2 audience.

SMART: It records 100 logs internally and we have created the easiest graphing software to use... just drag and drop at the bottom of this product page

FAST: It reads up to 1280 hz which is super fast enough for most drop tests.  See how many hz you need for that in this VIDEO

SAFE: It is PPE and UIAA rated at 25 kN (10 kN recommended), WLL of 30 kN, MBS at 90 kN, and in our test, the body broke at 140 kN

See how it compares to the Rock Excotica Enforcer and watch us break test it in our video here

Watch our deep dive on how to use it here

See manufacturer instructions and SOP here

The "i" stands for "improved".
Improved, as in revised and thus better than the predecessor in terms of torsion resistance, and temperature stability.

The LS3i features a few minor refinements, such as:
- solid reverse side (no more inserted plate)
- slightly larger front label (but same OLED)
- less torsion and bending sensitivity
- less temperature sensitivity (almost perfect temp. compensation)
- 10kN higher true breaking strength (15 instead of 14 tons MBS)
- better IP rating (IP68-0.1m instead of IP67)
(the specs, electronics, OLED display, etc. remain the same)

BUY A LINESCALE3 AND DEFENDER TO RECEIVE $20 OFF AT CHECKOUT!

EVERY LINESCALE INCLUDES: LineScale3, hard plastic protective case, charging cable, and firmware flash adapter.

FULLY EQUIPPED INCLUDES: everything in the base unit PLUS the 4 GB dual USB, rubber edge protector, and angled OTG cable.

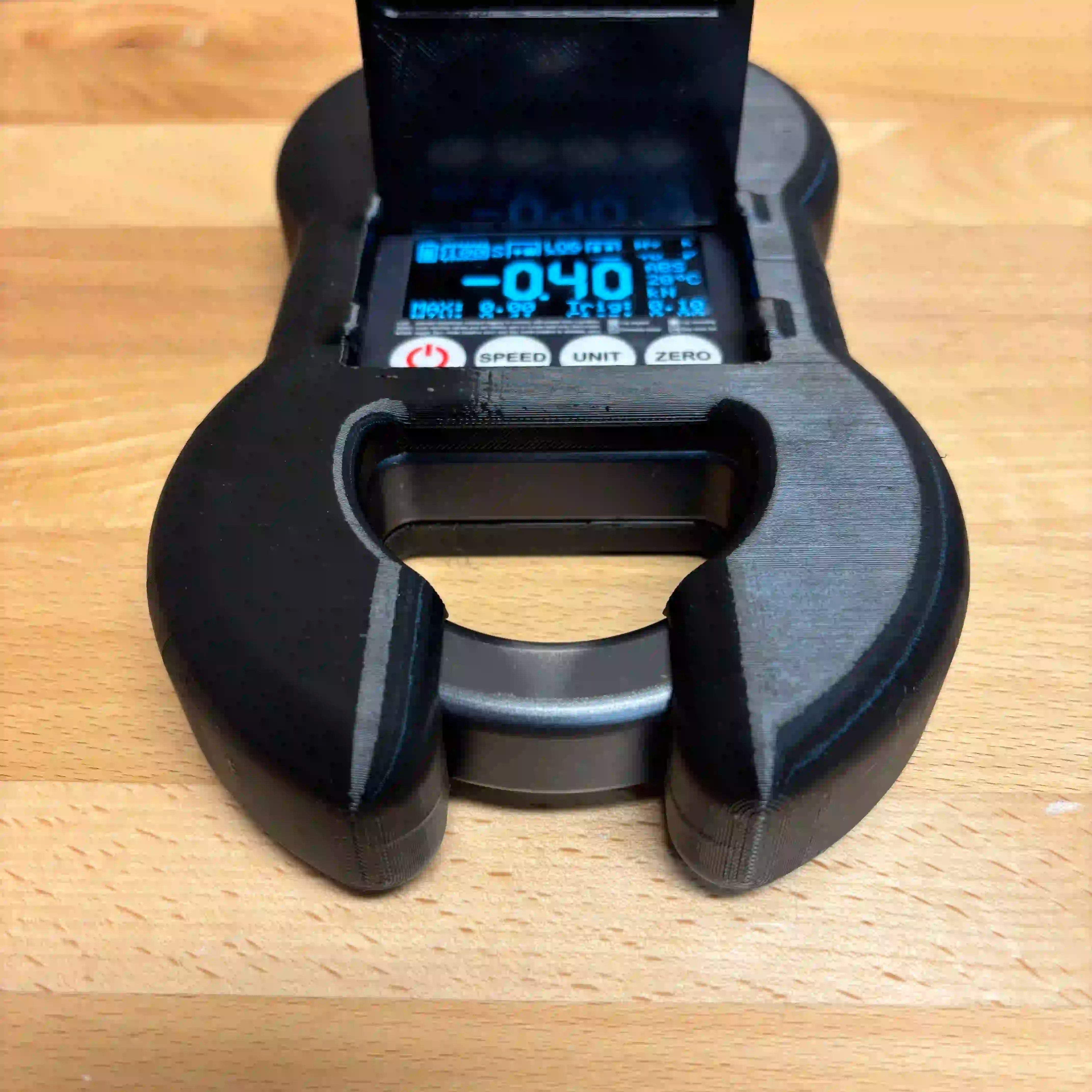

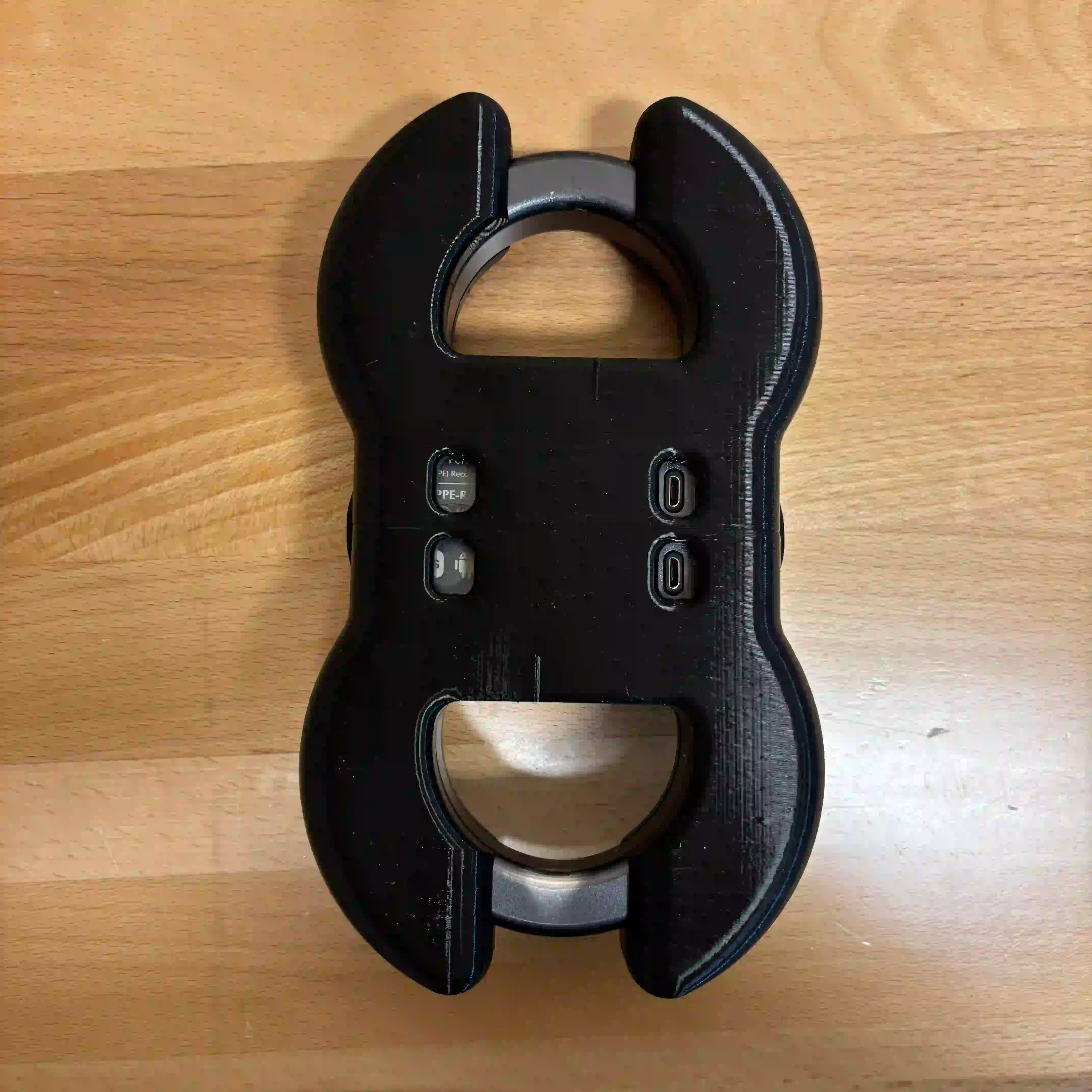

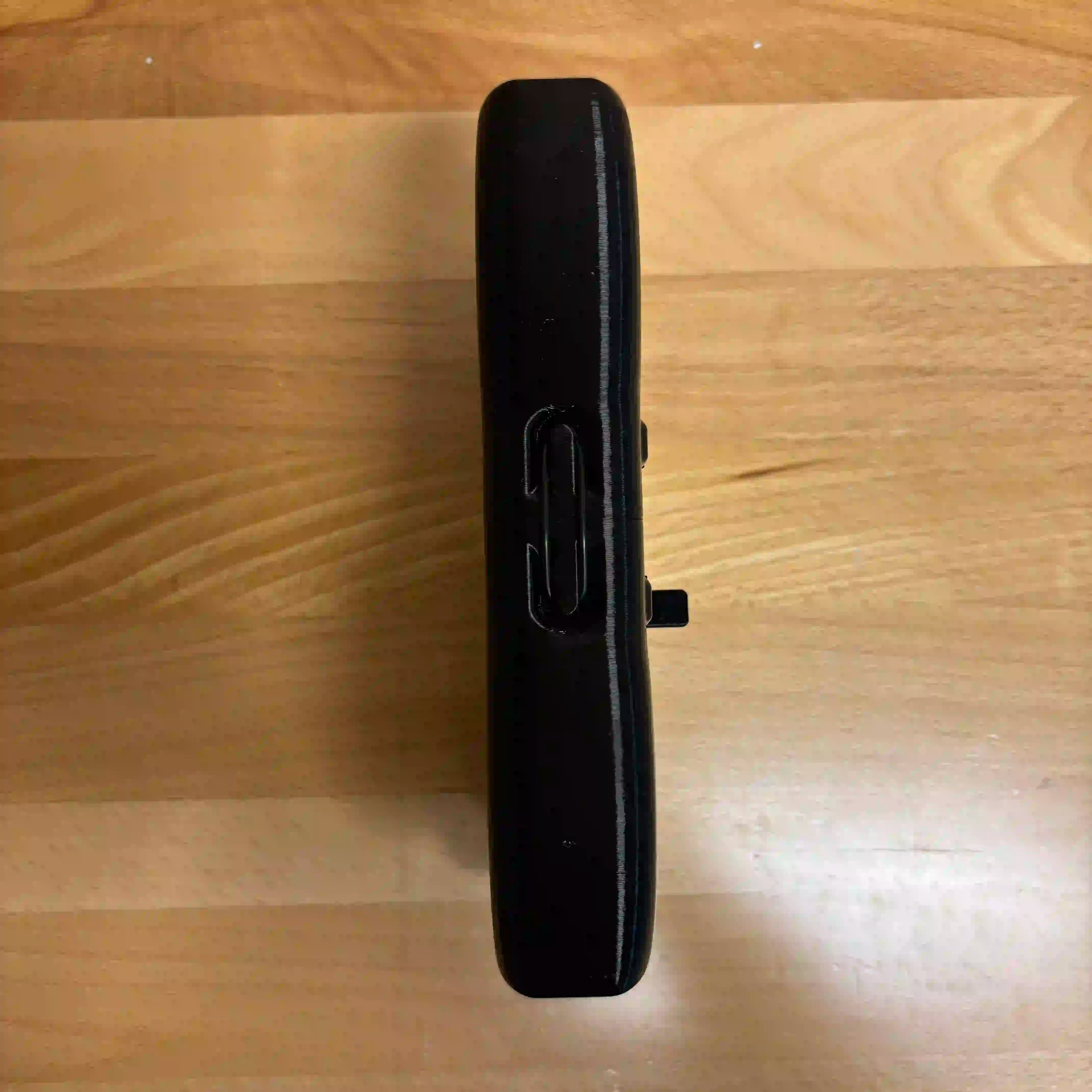

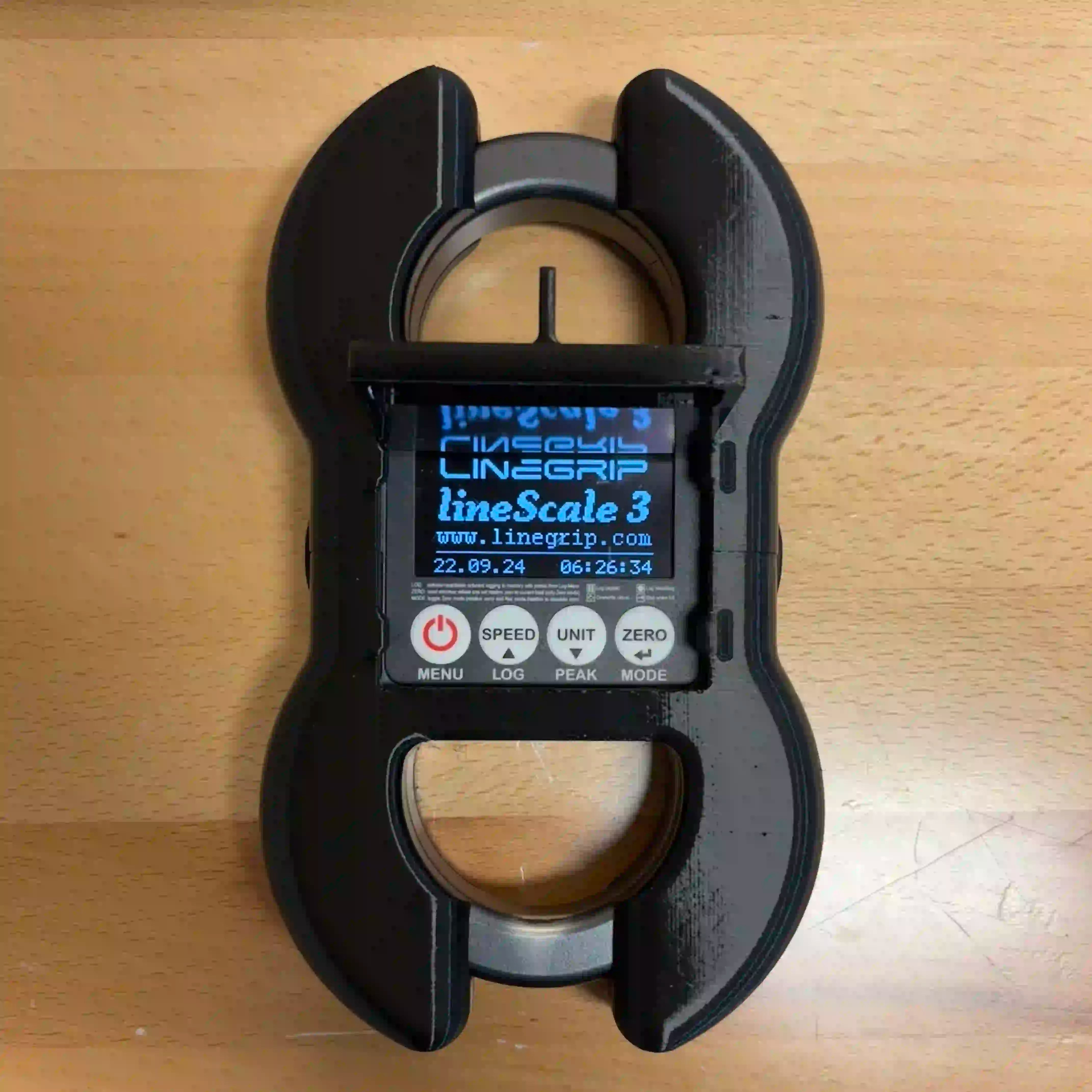

These cases are 3D printed out of a flexible TPU material with an internal shock absorbing structure, making them the best protection available for your lineScale2 or LineScale3! Hinged access door allows you to quickly see and interact with the screen while still providing protection during break tests! Cutouts in the back of the case allow charging and data transfer without removing the case(must use cable adapter for data transfer, LineScale3 flash drive does not fit in cutout).

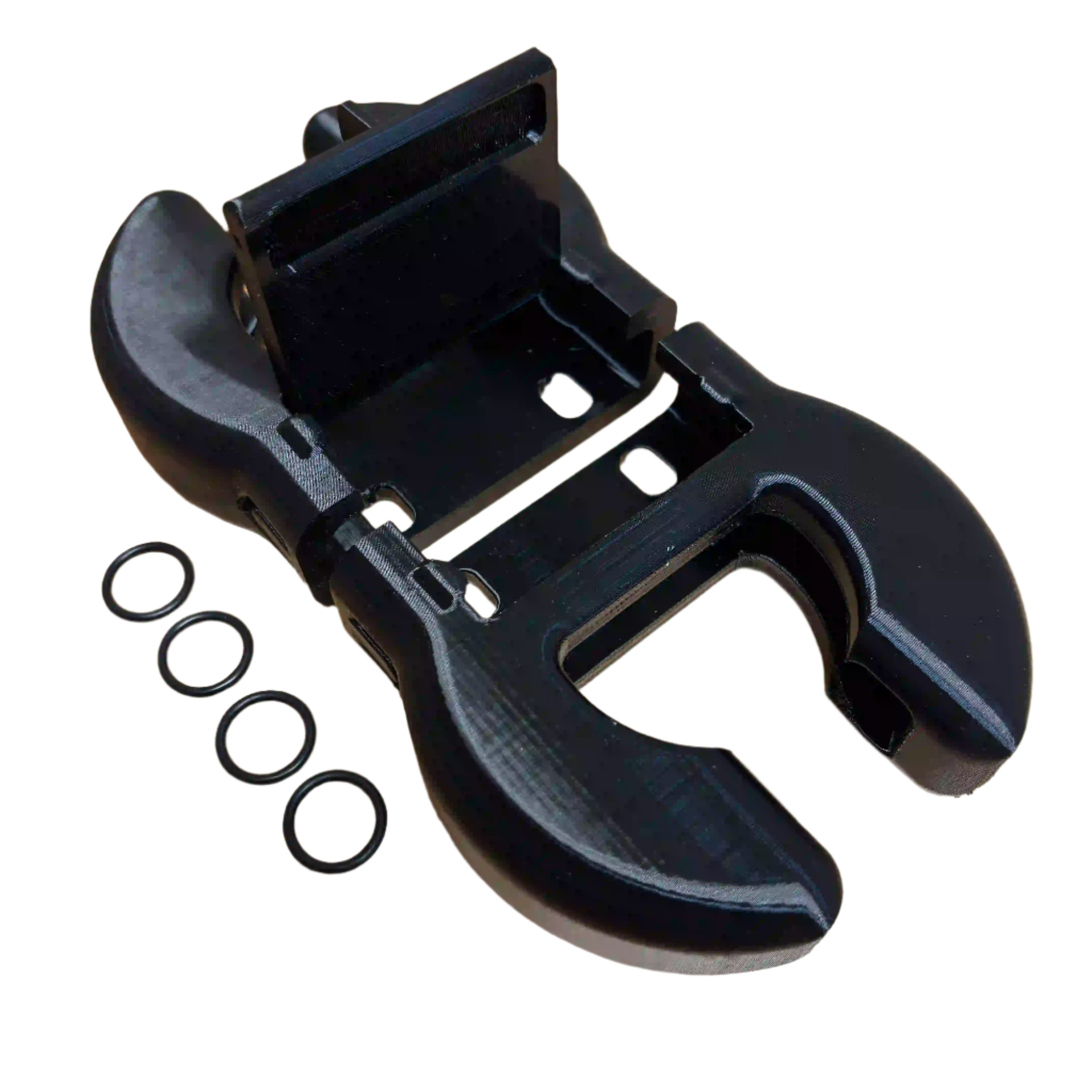

The two halves of the case are secured by our meticulously designed toroidal holding elements, crafted from a unique blend of high-performance elastomers.

Just kidding, they're normal O-Rings! We send two spares with each case, but if you happen to lose those you can pickup a couple -114 O-Rings from your local hardware store.

BUY A LINESCALE3 AND DEFENDER TO RECEIVE $20 OFF AT CHECKOUT!

NOTES:

LineScale3 shown for reference and is not included with this item.

This product contains 3D printed parts which may have cosmetic defects that will not affect overall function.

These DaySensor load cells have great specs for the best price we're aware of online.  The load cell we use in our break test machine was $1500 + $400 for the eyes.  These units go up to either 50kN or 100kN with an external reader that would do most of the testing we do here at HowNOT2, displaying peak force values as well as a graph showing force over time.  The LineScale 3i is a great load cell if you want to measure activities as it is an all-in-one without any cables and records internally.  HOWEVER, if you don't need that, you can save half the money on something that is stronger and faster.  The 50kN units are small in size, roughly the same as a LS3 and fit our 5 TON SHACKLES (not included) perfectly with the swivel eyes that are included.  If you need something even stronger look to the 100kN option which comes with rod end bearings that fit our 12.5 TON SHACKLES (not included). Or, if you prefer something you can connect straight to with soft shackles, we also carry 100kN column style load cells which come with heavy duty eyebolts.

Note: Videos show an older style 50kN load cell, new models are as shown in the photos and are slightly smaller with upgraded rod end bearings (eyes). Load cell reader does not support data export.

--- S-Beam, external reader, & 2 eyes are included.  Shackles are not.

INSTRUCTIONS
